Mobile Biometric Collection Kits
The Javelin™ Line of Mobile Biometric Collection Kits are lightweight, modular, Android based devices capable of collecting multi-modal biometrics (fingerprint, face, iris). The Javelin Jump Kit is a laptop biometric sensor solution with optional ID badge printer capability that supports high-volume collections for an office or check point use case. The Javelin™ line offers a range of two to four fingerprint sensors, single and double iris camera, and multiple cameras solutions for face capture. Our Ares Mobile Biometric Application is an Android and Windows based software across the Javelin™ line of products that ensures a consistent user experience across the Javelin™ line of biometric solutions.

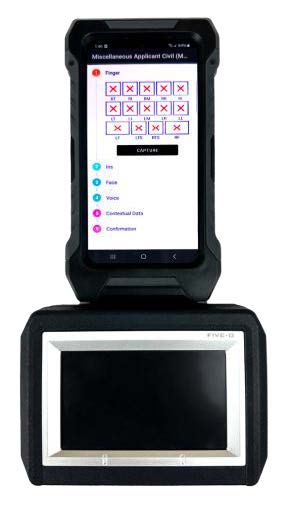

Javelin™
The Javelin™ is a rugged mobile biometric collection platform capable of collecting multi-modal biometrics. The Javelin™ offers a 2-finger fingerprint sensor and Smartphone camera for face capture. This device is perfect for military, law enforcement, humanitarian biometric collections, and access control. The Javelin™ runs our award-winning, industry-leading Ares™ Mobile Biometric Application software and ensures a consistent user experience across our Javelin™ line of biometric collection kits.
Product Features
- Lightweight and Modular
- Rugged Design for Law Enforcement and Military Use, MIL-STD 810g Drop Tested to Six Feet
- Samsung Galaxy S21 (Unlocked), or Galaxy S20 Tactical Edition Smartphones
- Android Based Software
- Optional Vehicle, Chest and Arm Mounts,
- Inductive Charging Capability
Additional Kit Components
- Snap-on Inductieve Charger
- Plug-in Fast Charger and Data Cable
- Rugged Kit Case
| Parameter | Value |
|---|---|
| Weight | 140.5 g (without cover), 147.8 g (with cover) |
| All-in-one Dimensions | 10.2” x 3.5” x 0.86” (Cased Phone & Module) |
| Module Dimensions | 3.533” x 4.091” x 0.86” |
| Fingerprint Sensor | FAP 45, Slap, Flat or Rolled Prints |
| Face Camera | SAP 52, Using Samsung Phone Camera |
| USB | Android OTG Micro-USB or USB-C |
| Ruggedness | IP-67 (Physical Module and Phone Case) IP-65 (Fingerprint Sensor Module) |
Javelin+
The Javelin+ Mobile Biometric Collection Kit is a lightweight, modular, android based device capable of collecting multi-modal biometrics (fingerprint, face, iris). The Javelin+ offers a 2-finger fingerprint sensor, single iris camera and Smartphone camera for face capture.
The Javelin+ is perfect for military, law enforcement, humanitarian biometric collections, and access control. The kit runs the award-winning, industry-leading Ares™ Mobile Biometric Application software and ensures a consistent user experience across the Javelin™ line of biometric collection kits.
Product Features
- Lightweight and Modular
- Rugged Design for Military and Law Enforcement, MIL-STD 810g Drop Tested to 6-Feet
- Samsung Galaxy S21 (Unlocked), or Galaxy S20 Tactical Edition Smartphones
- Android Based Software
- Optional Vehicle, Chest and Arm Mounts, Inductive Charging Capability
Additional Kit Components
- Snap-on Inductive Charger
- Plug-in Fast Charger and Data Cable
- Rugged Kit Case
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.39lbs (without cover, 0.41lbs (with cover) |
| All-In-One Dimensions | 10.2” x 3.5” x 1.4” (Cased Phone & Module) |
| Module Dimensions | 3.533” x 4.091” x 1.346” |
| Fingerprint Sensor | FAP 45, Integrated Biometrics Slap, Flat or Rolled Prints |
| Face Camera | SAP 52 Using Samsung Phone Camera |
| Iris Camera | IAP 30, IriTech Single Iris Capture |
| USB | Android OTG Micro-USB or USB-C |
| Ruggedness | IP-67 (Physical Module and Phone Case), IP-65 (Fingerprint Sensor Module) |
Javelin™ Jump Kit
The Javelin™ Jump Kit is a compact, light-weight, self-contained, biometric enrollment and identification station. Useful for fixed and semi-fixed site biometric enrollments, the station is designed for high throughput collection operations for large-scale registration, enrollment, and biometrically verified ID checks.
The Javelin™ Jump Kit is perfect for military, law enforcement, humanitarian biometric collections, and access control. The kit runs the award-winning, industry-leading Ares™ Mobile Biometric Application software and ensures a consistent user experience across the Javelin™ line of biometric collection kits.
Additional Kit Components And Optional Peripherals
- Local Power Adapter
- 26,900mAh External Battery Pack
- International Travel Adapter
- Mini Tripod
- ID Badge Printer (optional)
- Document Scanner/Authentication (optional)
- MRZ Swipe Card Reader (optional)
- NFC/RFID Reader (optional)
- Voice Collection (optional)
Device Specifications
| Parameter | Value |
|---|---|
| Weight | Under 20 lbs with Case |
| Dimensions | 19.0” x 15.5” x 7.5” |
| Transmission | USB |
| Power | Local Power or External Battery Pack |
| Ruggedness | IP-67 Case |
| Certifications | FBI Approved List for Mobile ID & Booking |
Fingerprint Sensor Specifications
| Parameter | Value |
|---|---|
| FAP | 50 |
| Weight | 0.422 lbs |
| Dimensions | 4.48” x 3.27” x .75” |
| Fingerprints | Rolled, Plain and 4-finger |
| Simultaneous Capture | 4 |
| Sensor Type | Thin Film Transistor |
| Sensing Area | 3.2” x 2.0” |
| Supported Image Formats | RAW, WSQ, BMP, JPEG2000, PNG |
| Operating Temperature | -10°C – +55°C |
| Humidity | 30-80% RH , 40°C (Non-Condensing) |
Iris Sensor Specifications
| Parameter | Value |
|---|---|
| IAP | 40 |
| Capture | Dual Iris Auto-Capture and Face Camera |
| Output Quality | 64 x 480 Grayscale Pixels (KIND-1) |
| Illuminator | IR (Day or Nighttime Capture) |
Document Scanner Specifications
| Parameter | Value |
|---|---|
| Weight | 0.176 lbs |
| Dimensions | 5.4” x 5.1” x 3.7” |
| Supported Document Formats | ID-1, ID-2, ID-3, other documents at or under maximum size |
| Video Sensor | CMOS, RGB, 5 mp |
| Scanner Size | 3.1 x 5” |
JavelinXL
The JavelinXL is a rugged mobile biometric collection platform capable of collecting multi-modal biometrics. The JavelinXL offers a 4-finger fingerprint sensor, dual iris camera, Smartphone camera for face capture.
The JavelinXL is perfect for military, law enforcement, humanitarian biometric collections, and access control. The JavelinXL runs the award-winning, industry-leading AresTM Mobile Biometric Application software and ensures a consistent user experience across the Javelin™ line of biometric collection kits.
Product Features
- Lightweight and Modular Clam Shell Design for Compactness and Protection of Screen and Fingerprint Sensor
- 4-Fingerprint Sensor and Dual Iris Camera
- Rugged Design for Military and Law Enforcement
- Internal Battery for Extended Use
- Modular Design for Easy Phone Removal
- Samsung Knox™ Mobile Device Management (MDM) -Management of Devices with a High Level of Security
Additional Kit Components
- Extension Cable
- Universal Power Adapter
- JavelinXL Kit Case
Device Specifications
| Parameter | Value |
|---|---|
| Weight | 2.5 lbs. with Phone |
| Dimensions | 7.65” x 4.5” x 3” |
| Transmission | WIFI, Cellular Network, USB-C Data Port |
| Power | Phone Battery plus Internal Battery |
| Ruggedness | IP-67 (Physical Module and Phone Case) |
Fingerprint Sensor Specifications
| Parameter | Value |
|---|---|
| FAP | 50 |
| Fingerprints | Rolled, Plain and 4-Finger Scanner |
| Simultaneous Capture | 4/4/2 |
| Sensor Type | Thin Film Transistor |
| Sensing Area | 3.2” x 2.0” |
| Transmission & Power | USB-C |
| Supported Image Formats | RAW, WSQ, BMP, JPEG2000, PNG |
| Operating Temperature | -10°C – +55°C |
| Humidity | 30-80% RH , 40°C (Non-Condensing) |
| Ruggedness | IP-65 |
Iris Sensor Specifications
| Parameter | Value |
|---|---|
| IAP | 30 |
| Capture | Dual Iris Auto-Capture, 15cm Disance |
| Output Quality | 640×480 Grayscale Pixels (KIND-1) |
| Illuminator | IR (Day or Nighttime Capture) |
The Ares Mobile Biometrics Application (MBA)
The Ares Mobile Biometrics Application (MBA) Supports Military, Law Enforcement, and Humanitarian Collection and Identification Requirements.
Specifications
- Android Based Software for the Javelin™Line of Products
- On-Board Matching of Fingerprint, Face and Iris
- Collects, Validates and Submits Biometric Transactions for Near Real-Time Responses Against Local and National Biometric Repositories
- Samsung Knox™ Mobile Device Management (MDM) – Management of Devices with a High Level of Security
- Send Submissions and Receive/View Biometric Responses
From Multiple Agencies - On FBI Approved List for Mobile Identification, Mobile Booking and Live Scan
- Software Settings and Configurations can be Centrally Managed by the Ares Gateway Transaction Manager
Collect And Submit Transaction and Receive And View Responses
- Create EBTS Spec Compliant Enrollment and Search Transactions
- Submit Transactions over Wi-Fi and Cellular Networks to Local and National Repositories
- Collections Stored When Operating in a Disconnected Environment Can Be Automatically Transmitted When Reconnected
*Parsons complies with all applicable Trade Compliance regulations. Some of Parsons products may require an authorization from the U.S. Government before export.
