Radio Frequency (RF) System Conditioning

RF Switches, Amplifiers, and Distributions

We specialize in high-performance, high-dynamic range products that maximize system performance. Flexible RF/IF distribution products range from highly specialized custom components to off-the-shelf solutions to meet all of your system needs. We have your RF solutions from antenna to data.

Product Categories

Switches

RF/IF Distributions

RF Distribution Components

Multicoupler Frames

Tower-Mount Low-Noise Amplifiers

Switches

We offer small modular customizable antenna switches for a variety of applications. These include low SWAP modules for vehicular DF systems or rack-mount equipment for test systems. We also offer switches with multiple inputs and outputs for RF Distribution. The switches incorporate a proprietary linear amplifier design for high-dynamic range and provide a nominal gain of 0 dB.

Model #	Frequency Range (MHz)	In/Out	Packaging	Control	Switch Type
SP-2312	100–500	8/1	3” x 5.8” x 1.6”	Serial	Commutating DF
SP-2313	100–3000	8/1	3” x 5.8” x 1.6”	Serial	Commutating DF
SP-2314	100–3000	8/1	3” x 5.8” x 1.6”	Serial	Commutating DF
SP-4206	0.3–3000	16/1	1U 19” rack	Ethernet	Phase Matched
SP-4207	0.5–300	4/8	1U 19” rack	Ethernet	Non-blocking
SP-4208	0.5–300	4/8	1U 19” rack	Ethernet w/ Indicators	Non-blocking
SP-4301	450–3000	4/8	1U 19” rack	Ethernet	Non-blocking
SP-4302	450–3000	4/8	1U 19” rack	Ethernet w/ Indicators	Non-blocking
SP-4304	20–3000	4/8	1U 19” half-rack	Ethernet	Non-blocking
SP-4305	20–3000	4/8	1U 19” rack	Ethernet w/ Indicators	Non-blocking
SP-4306	20–6000	4/8	1U 19” rack	Ethernet	Non-blocking
SP-4307	20–6000	4/8	1U 19” rack	Ethernet w/ Indicators	Non-blocking
SP-4316	20–6000	8/16	2U 19” rack	Ethernet, FP optional	Non-blocking
SP-4342	20–6000	2/4	5.8” x 1.8” x 7.8”	Ethernet/Serial	Non-blocking

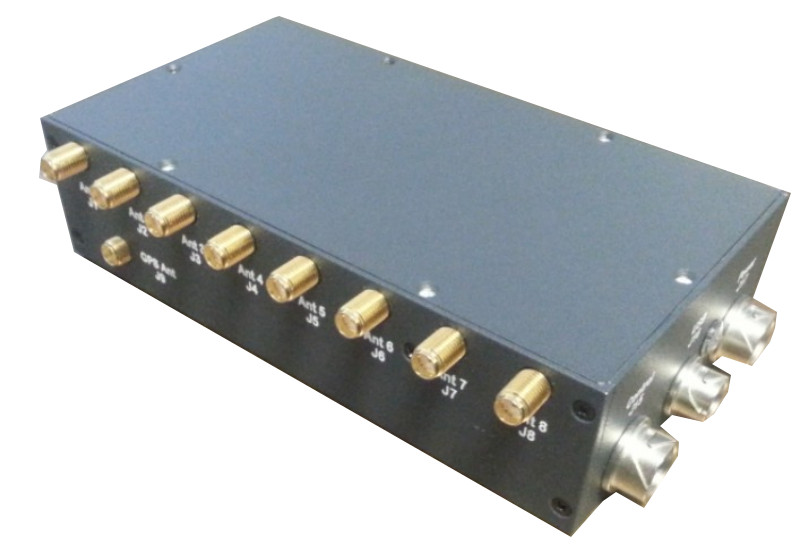

SP-2312 20–500 MHz Antenna Switch

SP-2313 20–3000 MHz Antenna Switch

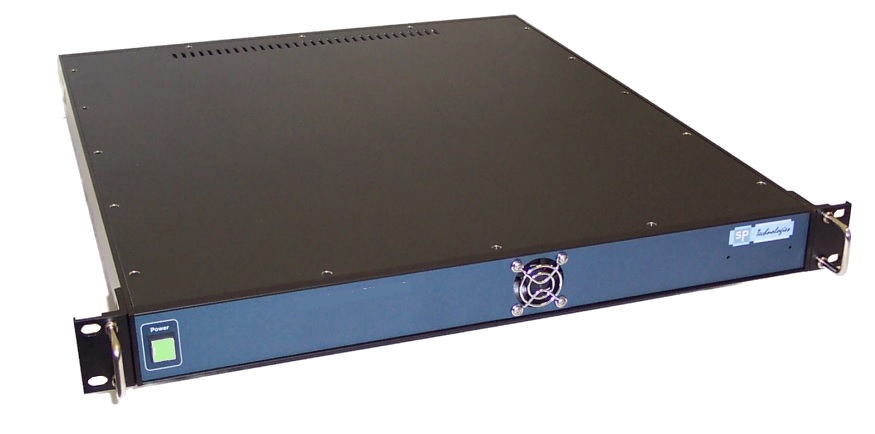

SP-4207 .5-300 MHz 4×8 RF Switch

SP-4208 .5-300 MHz 4×8 RF Switch

The SP-4208 4×8 HF RF switch is a nonblocking switch that provides functionality from 0.5 to 300 MHz. The switch provides excellent intermodulation and noise performance and is ideal for use in systems with low-noise amplifiers.

Each RF input is routed through a high dynamic range amplifier and then through an eight-way splitter. An array of switches allow any of the four inputs to be routed to one or more of the eight outputs. The unit includes an LED matrix to show switch configuration on the front panel.

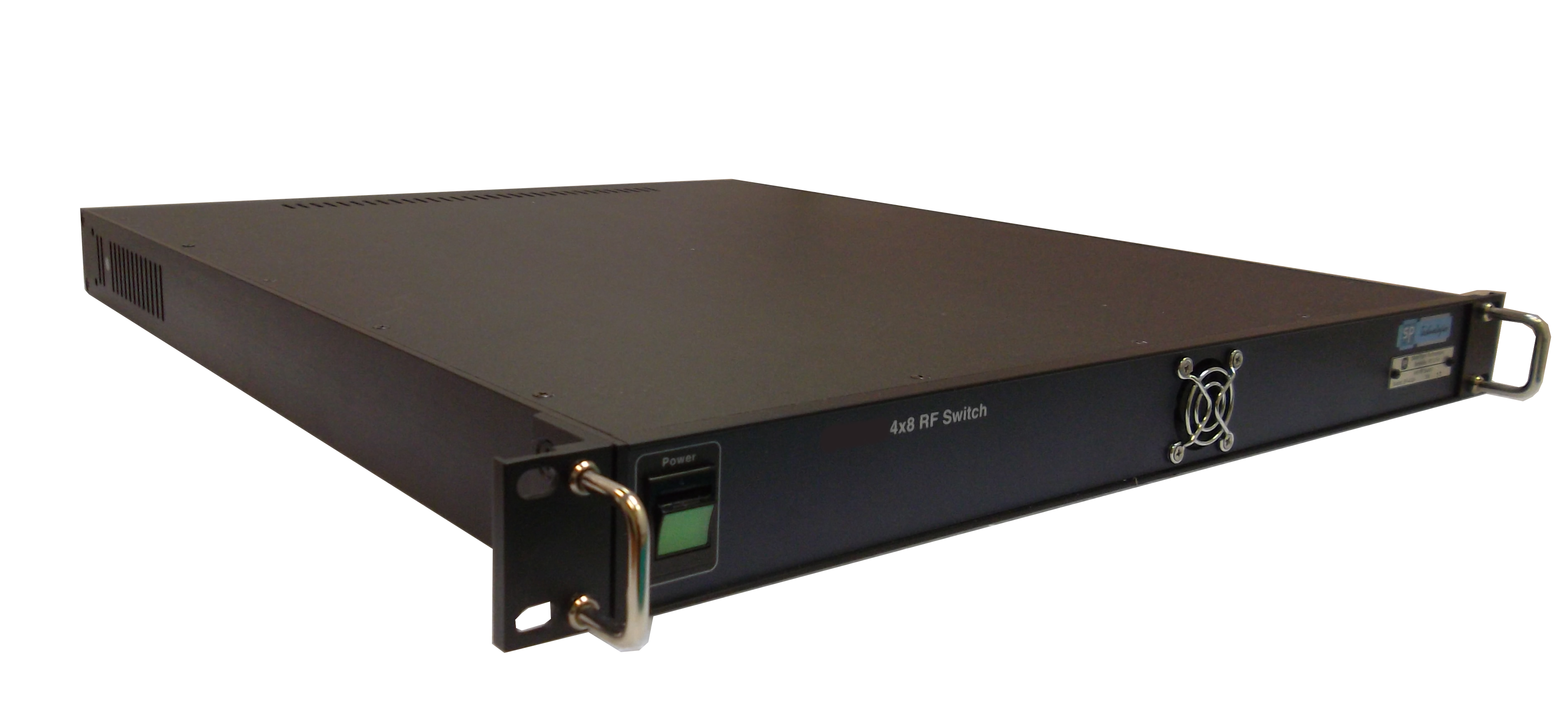

SP-4301 450–3000 MHz 4×8 RF Switch

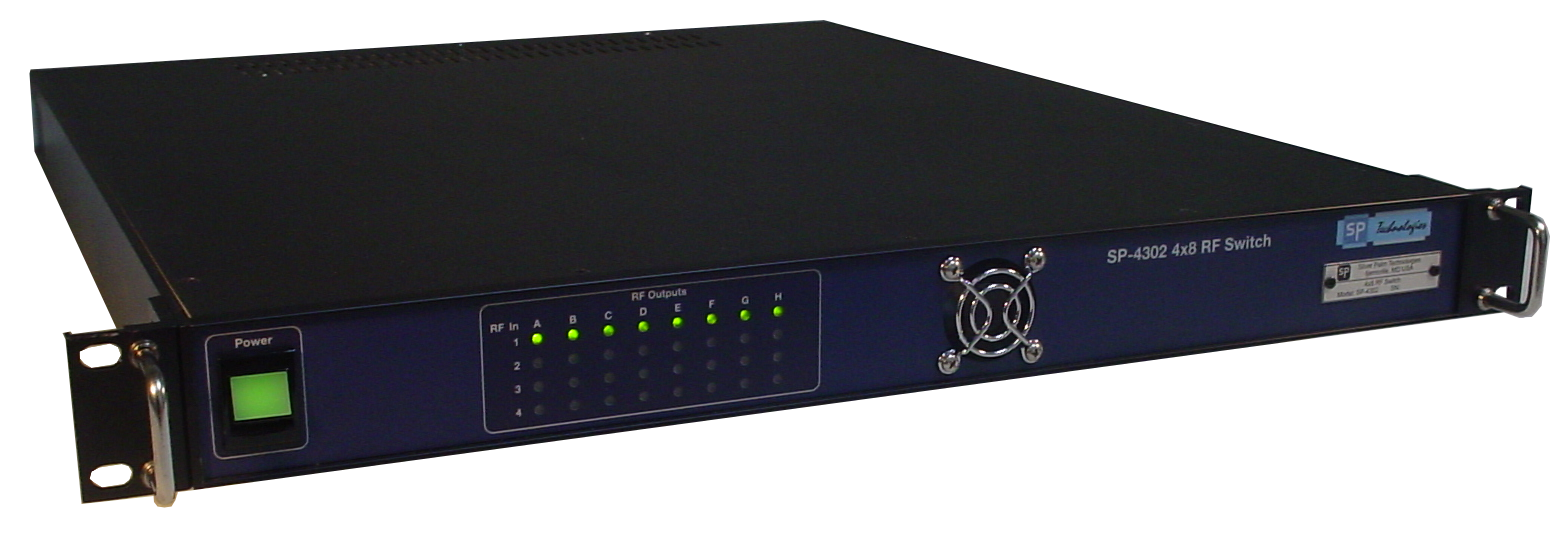

SP-4302 450–3000 MHz 4×8 RF Switch with Display

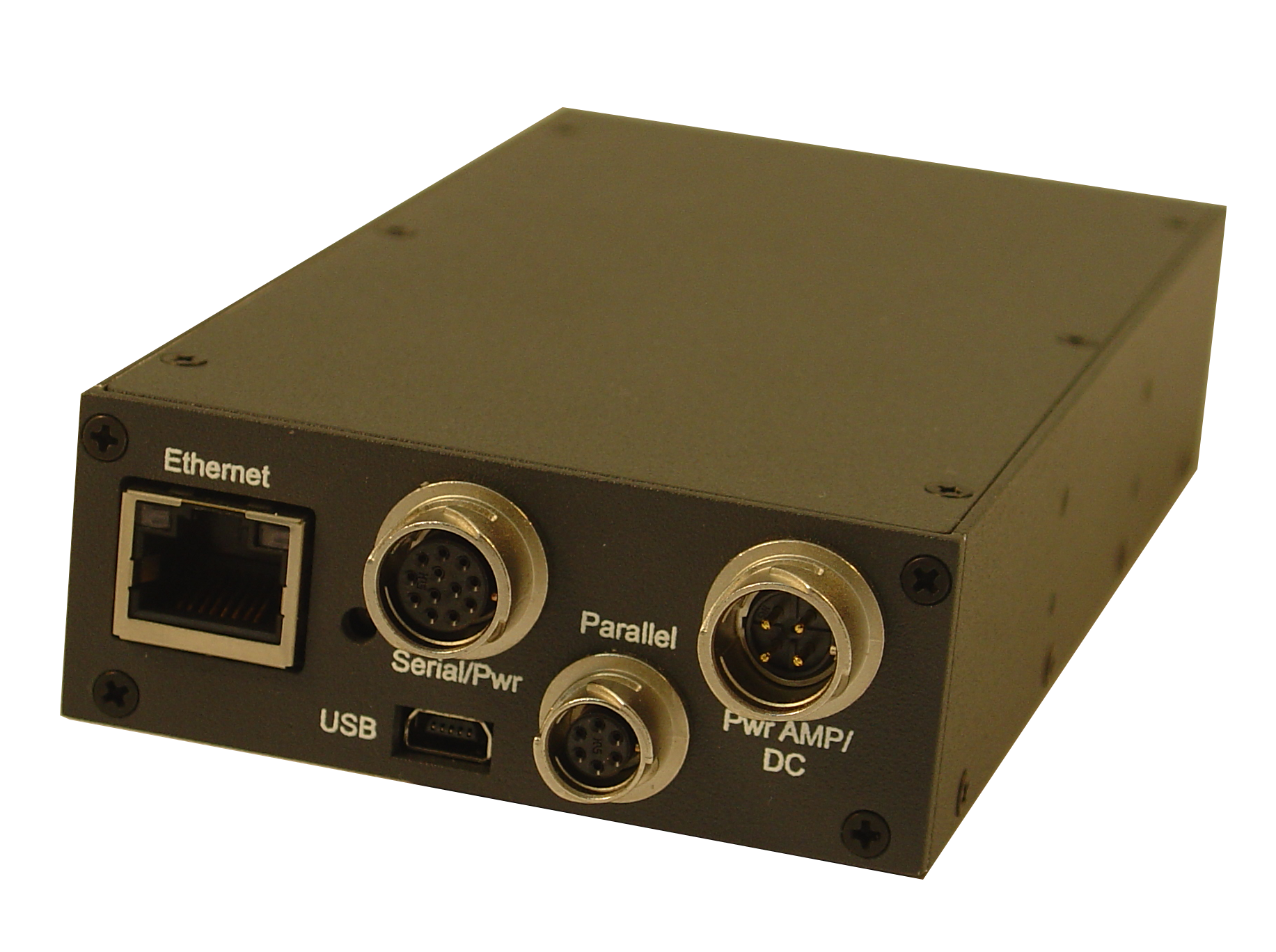

SP-4303 50 MHz-2 GHz SDR Tx/Rx Switch

SP-4304 20–3000 MHz 4×8 RF Switch

SP-2314 20 MHz–1 GHz Antenna Switch

SP-4206 16-to-1 Switch

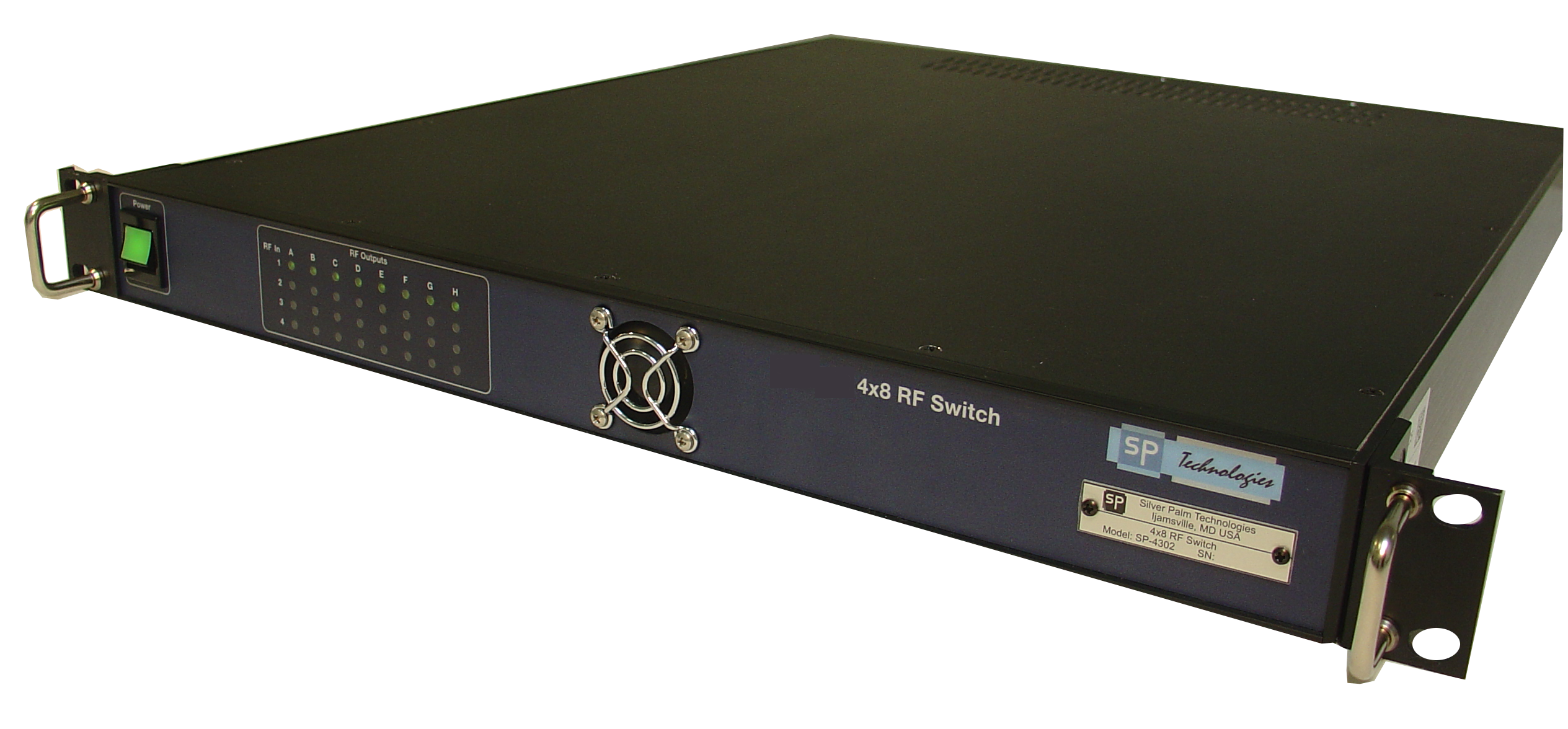

SP-4305 20–3000 MHz 4×8 RF Switch with Display

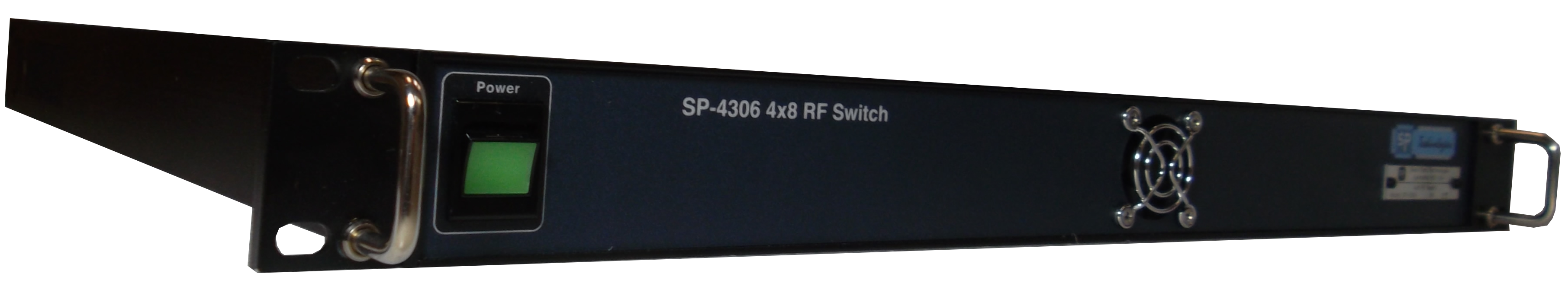

SP-4306 20-6000 MHz 4×8 RF Switch

SP-4307 20-6000 MHz 4×8 RF Switch with Display

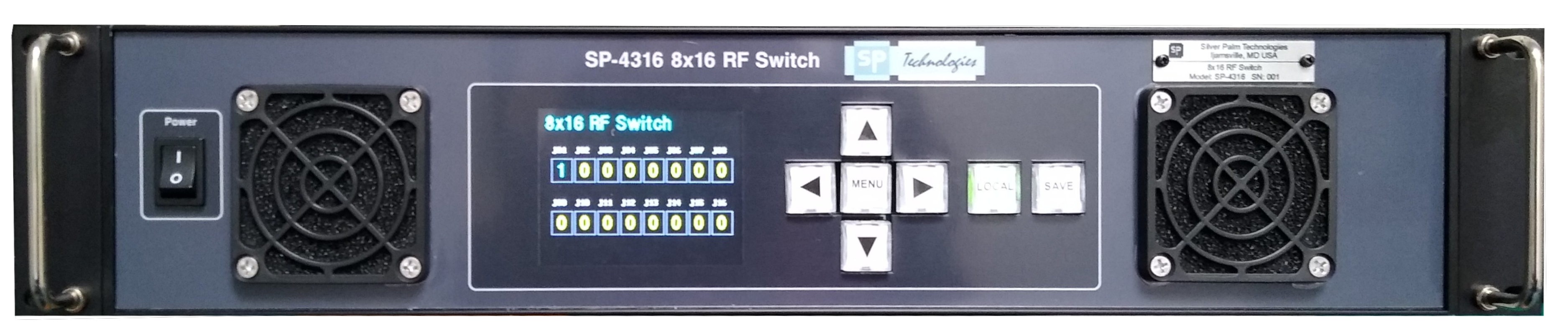

SP-4316 20-6000 MHz 4×8 RF Switch with Display

The SP-4316 8×16 RF switch is a nonblocking switch that provides functionality from 20 to 6000 MHz. Each RF input routes through a cascade of high dynamic range proprietary-balanced amplifiers and broadband splitters. The RF inputs can be performance optimized to support 20 to 3000 MHz, 500 to 6000 MHz, or the entire 20 to 6000 MHz frequency range. An array of switches allows any of the eight inputs to route to one or more of the 16 outputs.

The RF switch includes a front-panel interface to control or show status of the RF switches. A no front-panel option is also available. There is space for optional bias Ts and a dedicated power supply that would allow the SP-4316 to power Tower Mount Amplifiers connected to the RF inputs.

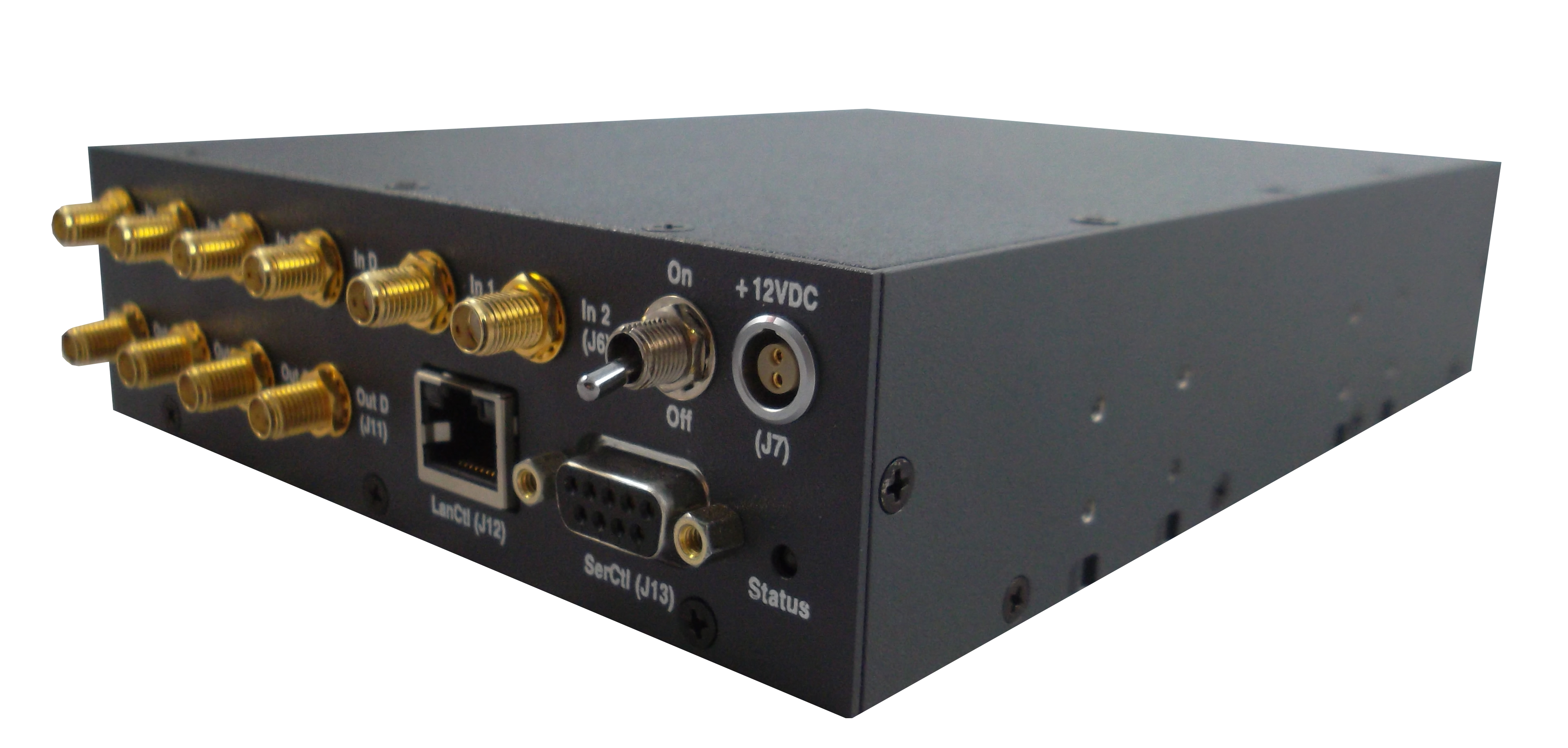

SP-4342 20-6000 MHz 2×4 RF Switch

The SP-4342 2×4 RF switch is a nonblocking switch that provides functionality from 20 to 6000 MHz and is LAN controlled. Each input can be configured to support 20–3000 MHz or 800–6000 MHz. The switch provides excellent intermodulation and noise performance and is ideal for use in systems with low-noise amplifiers.

The switch is specifically designed to integrate with the SP-1342 four-channel 10-gigabit Ethernet (10GE) receiver. The combination of the SP-4342 and SP-1342 provide a high-performance, low-cost antenna to digital IF over 10GE solution.

RF/IF Distribution Units

These units have signal and overload indicators and are controllable via Ethernet or the front panel. They offer configurable frequency ranges for optimal performance.

Model #	Frequency Range (MHz)	In/Out	Packaging	Control	Gain
SP-4201	5–100 MHz	Quad 1/4	1U 19” rack	Ethernet	-10 to +10 dB
SP-4202	5–100 MHz	Dual 1/6	1U 19” rack	Ethernet and front panel	-10 to +10 dB
SP-4203	5–210 MHz or 25–1500 MHz	Quad 1/4	1U 19” rack	Ethernet and front panel	-10 to +20 dB
SP-4203-1	5–210 MHz or 25–1500 MHz	Quad 1/4	1U 19” rack	Ethernet and front panel w/ gain readout	-10 to +20 dB
SP-5000	DC–100	Dual 1/6	1U 19” half-rack	Front panel	-10 to +10 dB

SP-4201 5–100 MHz 4×4 IF Distribution

The SP-4201 is a low-distortion IF distribution amplifier with coverage from 5 to 100 MHz. It includes quad one-to-four distribution channels with independent gain control, signal present indicator, and overload indicator in a 1U full-rack chassis with Ethernet 10/100 Base-T control. Gain control is from -10 db to +10 db in 0.5 db steps. Maximum output drive is nominally 1-V RMS into 50 ohms.

SP-4202 5–100 MHz 1×6 IF Distribution

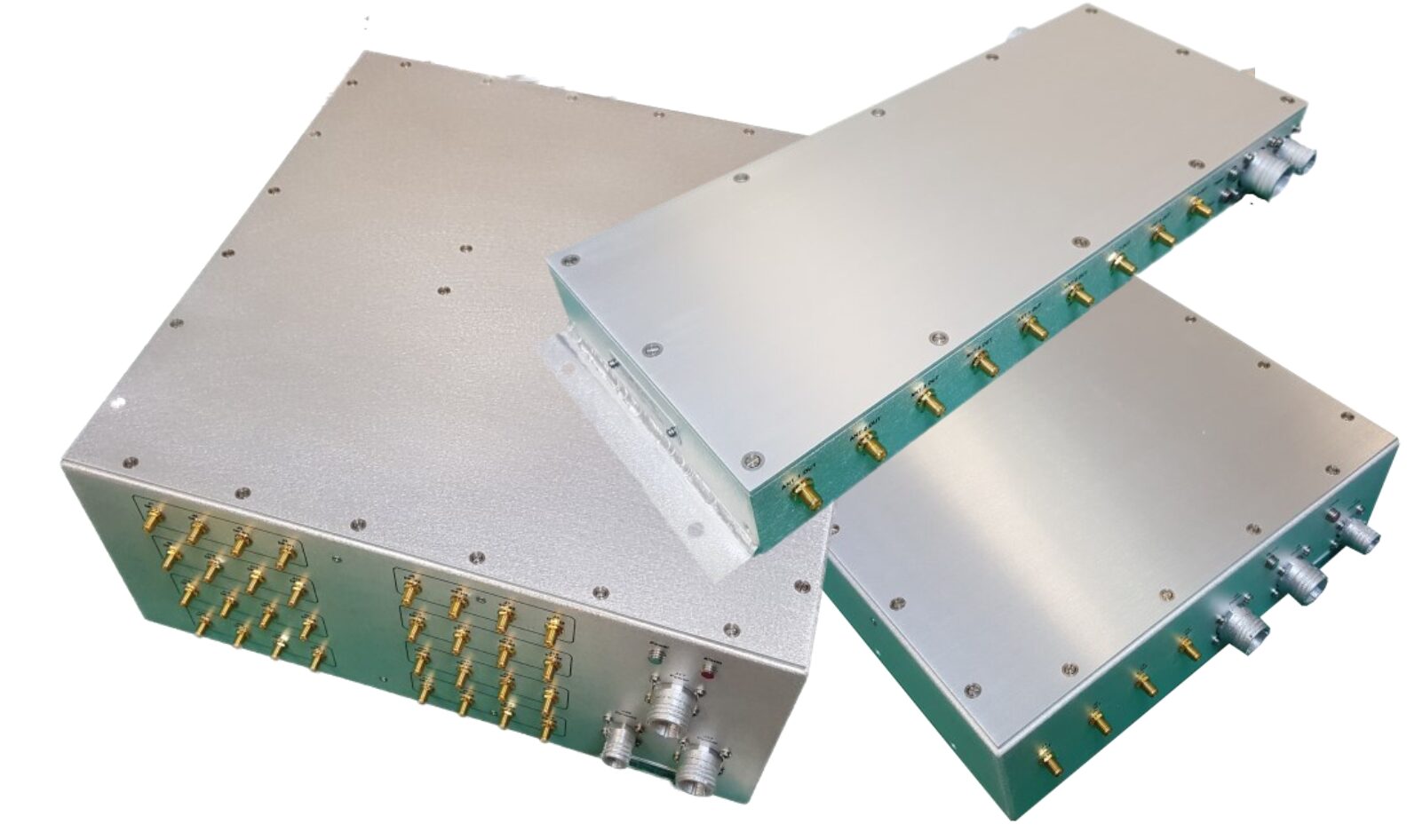

SP-2601 RF Distribution System

The SP-2601 is a complete modular RF distribution system that can support up to six multichannel antenna arrays and up to 56 receivers (45 DF and 11 Intercept). Frequencies from 0.5 MHz to 6.5 GHz are supported. For all bands with the exception HF, nine element arrays are supported: eight DF elements and one Intercept element. For HF, a 10-element array is supported with the 10th element used for both DF and Intercept. The modular design of the SP-2601 allows additional frequency band to easily be accommodated.

SP-4203-1 4×4 Flexible IF Distribution Amplifier

The SP-4203-1 is a 4×4 IF Distribution Amplifier provides the isolation and linear amplification required for distributing 70 MHz, 140 MHz, 160 MHz, and 1 GHz IF signals. It can be fitted with various distribution channels to offer choices of frequency coverage and bandwidth. Channels can be populated with a 5-210 MHz module, ideal for 70-160 MHz IFs, or a 25-1500 MHz module, ideal for 1 GHz IFs. The SP-4203-1 provides front-panel read-out of channel gain setting.

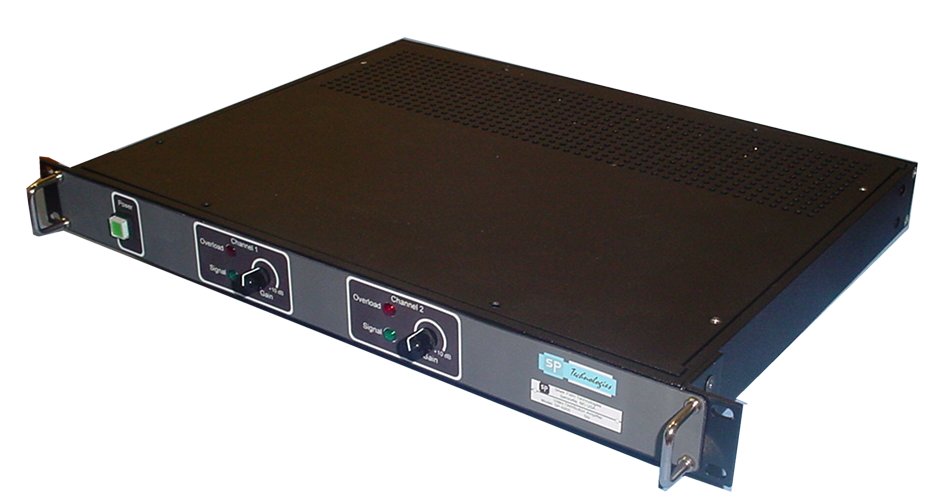

SP-5000 DC-100 MHz 1×6 Video Distribution Amplifier

SP-2604 RF Conditioning Units and Fiber Optic Link

The SP-2604 is a family of RF conditioning units (RCUs) designed specifically for multichannel Direction Finding (DF) and Beam Forming applications where coax cable runs are impractical. The units support three sets of eight DF channels as well as three intercept channels. The SP-2604 RCUs are packaged in a custom ruggedized EMI tight enclosure that meets MIL-STD-810 and RTCA/DO-160 environmental requirements.

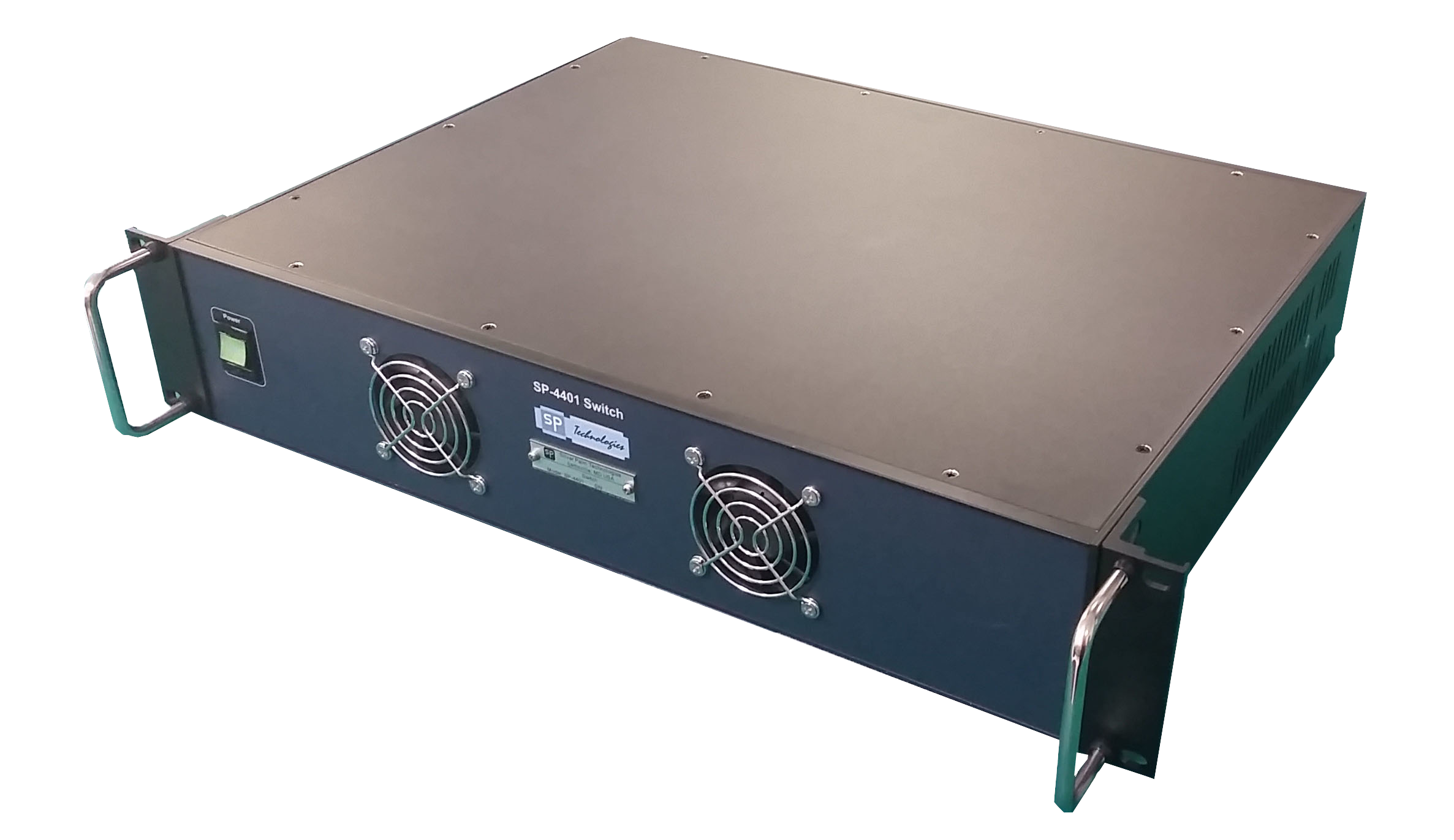

SP-4401 500-8000 MHz Distribution Box

RF Distribution Components

High performance RF components used in our products are available in compact packaging. These components are powered from a single 5 VDC supply and offer broad frequency coverage with high dynamic range and low noise figure.

Model #	Frequency Range (MHz)	Function	Gain (dB)	NF (dB)	OIP3 (dBm)	OIP2 (dBm)	Packaging
SP-4707	20–4000	Balanced Amplifier	12.5	3	+42	+65	2.8” x 1.8” x .6”
SP-4709	20–4000	4-Way Multicoupler	0	4.5	+25	+50	3.3” x 3.5” x .6
SP-4710	20–4000	8-Way Multicoupler	0	4.5	+25	+50	6.0” x 4.0” x .8”
SPEC-A11AF	0.5 to 30	Amplifier	15.2	3.5	+46	+79	2.5" x 2.6" x .71"
SPEC-A11AG	0.1 to 200	Amplifier	14.5	4.0	+41	+79	2.5" x 2.6" x .71"
SPEC-A11EI	20 to 1000	Amplifier	18.3	4.0	+45	+65	2.5" x 2.6" x .71"
SPEC-A11EM	20-6000	Amplifier	13.5	4.0	+43	+65	2.5" x 2.6" x .71"
SPEC-A11EM-1	20 to 3000	Amplifier	26.3	4.0	+40	+70	2.5" x 2.6" x .71"
SPEC-A11EO	20 to 4000	Amplifier	12.5	3.0	+42	+65	2.5" x 2.6" x .71"
SPEC-A11ES	20 to 6000	Amplifier	10.4	4.0	+34	+64	2.5" x 2.6" x .71"
SPEC-A11ES-1	20 to 6000	Amplifier	23.5	4.0	+35	+65	2.5" x 2.6" x .71"
SPEC-A11GT	100 to 6500	Amplifier	14.5	4.0	+34	+64	2.5" x 2.6" x .71"
SPEC-A11HS	500 to 6000	Amplifier	12.0	7.0	+41	+65	2.5" x 2.6" x .71"
SPEC-A11HS-1	500 to 6000	Amplifier	14.0	3.0	+39	+65	2.5" x 2.6" x .71"
SPEC-A11HT	500 to 6500	Amplifier	14.0	3.5	+39	+65	2.5" x 2.6" x .71"
SPEC-M12EM	20-3000	Multicoupler	2.5	4.0	+31	+50	N/A
SPEC-M14AF	0.5 to 30	Multicoupler	1.0	5.0	+45	+70	N/A
SPEC-M14EM	20 to 3000	Multicoupler	0.0	4.5	+25	+50	N/A
SPEC-M14ES	20 to 6000	Multicoupler	1.5	5.0	+22	+52	3.3" x 3.5" x .6"
SPEC-M14HT	600 to 6500	Multicoupler	0.0	5.0	+25	+40	N/A
SPEC-M18AF	0.5 to 30	Multicoupler	0.0	5.5	+45	+70	3.53" x 5.83" x .71"
SPEC-M18EO	20 to 4000	Multicoupler	0.0	4.0	+30	+50	3.53" x 5.83" x .71"
SPEC-M18HT	500 to 6500	Multicoupler	-0.8	4.7	+21	+49	3.53" x 5.83" x .71"
SPEC-M1GAF	0.5 to 30	Multicoupler	3.3	6.2	+45	+92	10.63" x 3.53" x .71"
SPEC-M1GES	20 to 6000	Multicoupler	3.3	5.6	+20	+40	10.63" x 3.53" x .71"

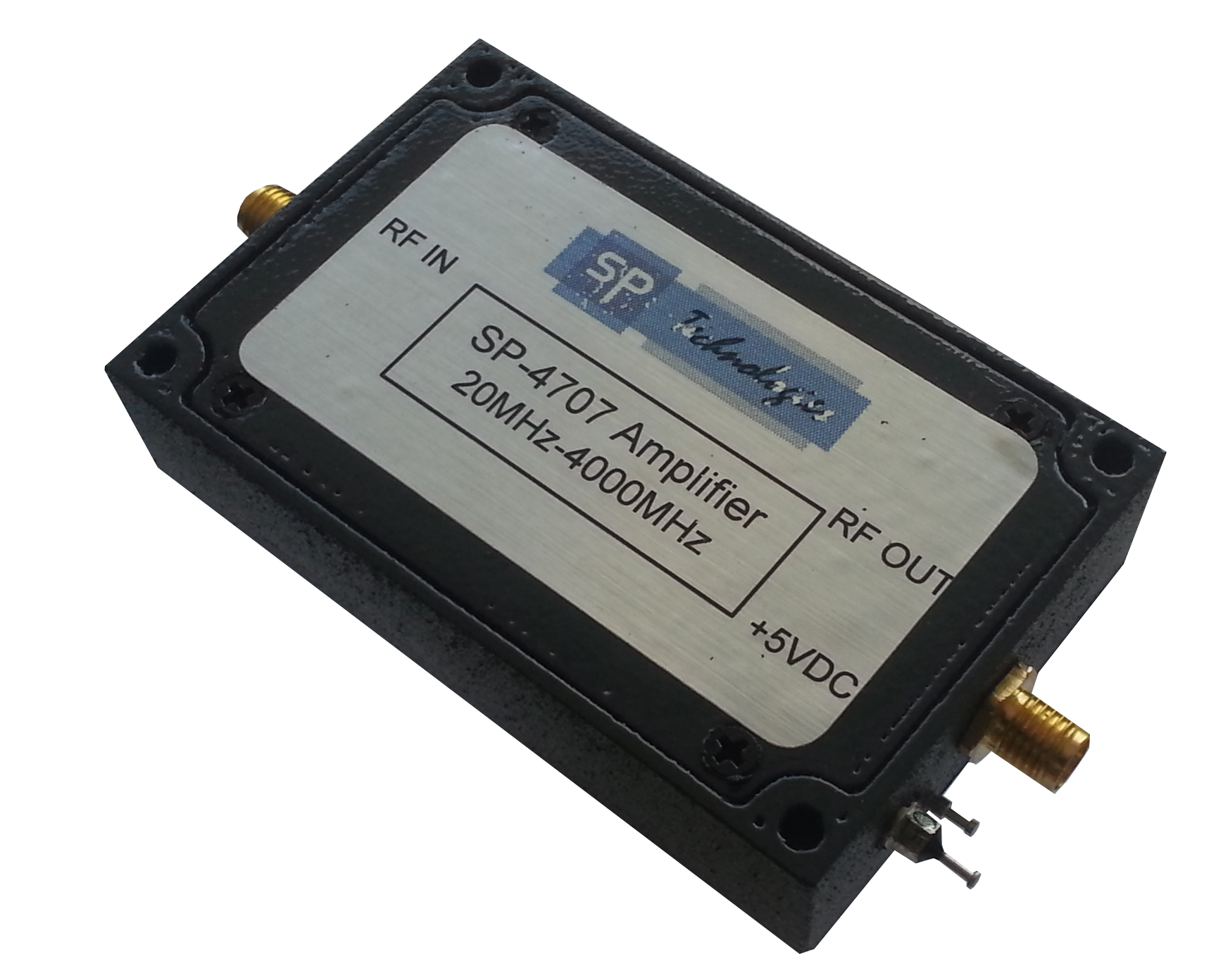

SP-4707 20-4000 MHz High Dynamic Range Amplifier

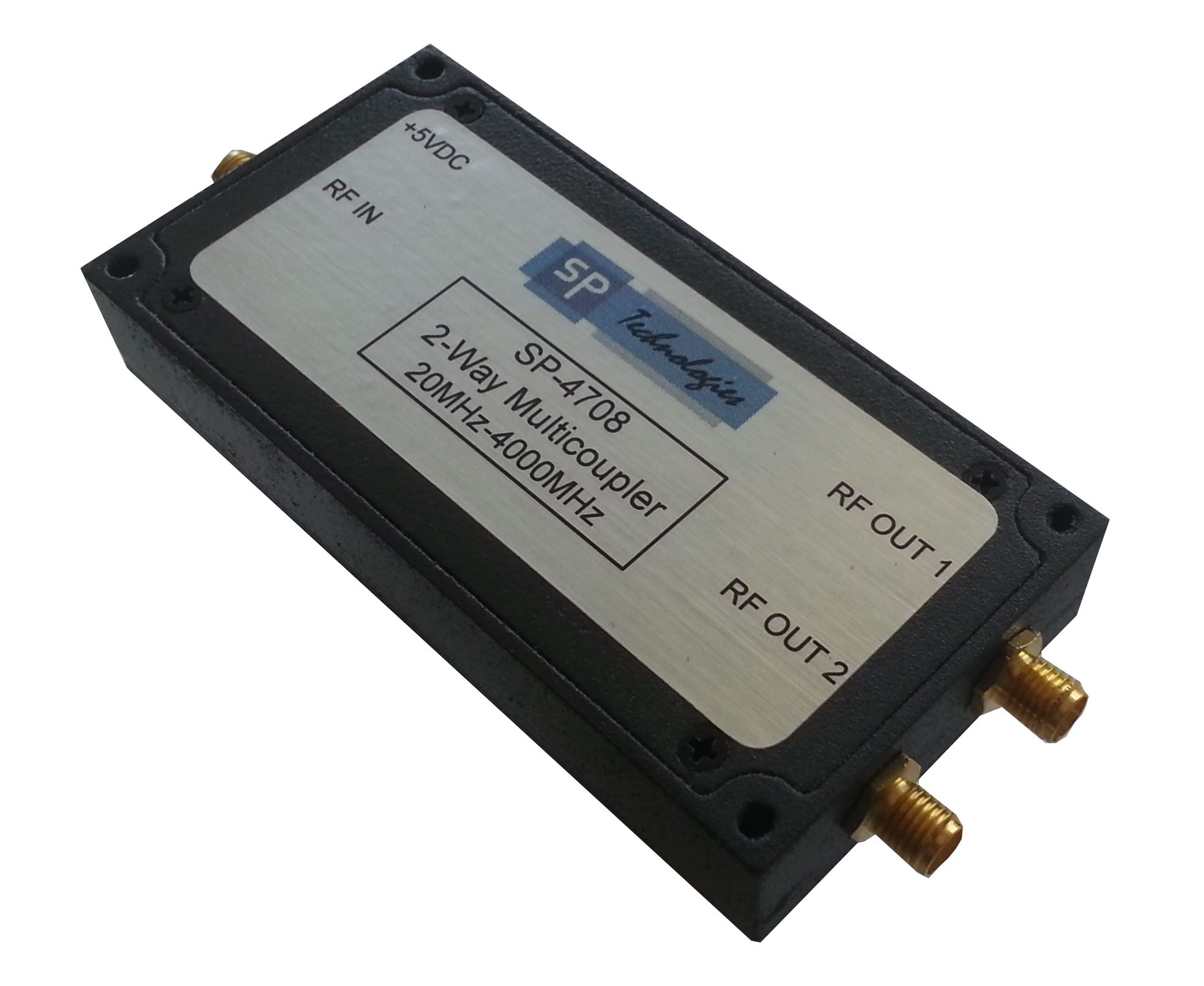

SP-4708 20-3000 MHz High Performance VHF/UHF Two-Way Multicoupler

SPEC-A11AF 0.5-30 MHz High Performance Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11AF offers excellent performance within the MF to HF bands. With high second-and third-order intercept points, the SPEC-A11AF is an HF amplifier that offers great performance without sacrificing noise figure or power consumption.

SPEC-A11AG .100-200 MHz High Performance Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11AG offers excellent performance within the LF to VHF bands. With high second-and third-order intercept points, the SPEC-A11AG is an HF amplifier that offers great performance without sacrificing noise figure or power consumption.

SPEC-A11EI 20-1000 MHz High Performance Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11EI offers excellent performance within the HF to UHF bands. With high second-and third-order intercept points, the SPEC-A11EI provides high dynamic range amplification without sacrificing noise figure or power consumption.

SPEC-A11EM 20-3000 MHz High Performance Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11EM offers excellent performance within the HF to UHF bands. With high second-and third-order intercept points, the SPEC-A11EM provides high dynamic range amplification without sacrificing noise figure or power consumption.

SPEC-A11EM-1 20-3000 MHz High Gain Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11EM-1 is a two-stage amplifier that offers excellent performance within the HF to UHF bands. High gain, great second-and third-order intercept points, and low noise figure makes the SPEC-A11EM-1 an excellent amplifier for any high-dynamic range RF chain.

SPEC-A11HS 500-6000 MHz High Dynamic Range Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11HS offers excellent performance within the UHF to SHF bands. With its great second-and third-order intercept points, the SPEC-A11HS provides high dynamic range amplification without sacrificing noise figure or power consumption.

SPEC-A11HS-1 500-6000 MHz Low Noise Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11HS-1 offers excellent performance within the UHF to SHF bands. With its low noise figure and great second-and third-order intercept points, the SPEC-A11HS-1 provides high dynamic range amplification without sacrificing power consumption.

SPEC-A11HT 500-6500 MHz Extended Frequency Range Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11HT offers this excellent performance inside the UHF and SHF bands. With excellent second and third-order intercept points, the SPEC-A11HT provides high dynamic range amplification without sacrificing noise figure or power consumption.

SPEC-M14ES 20-6000 MHz 4-Way Unity Gain Multicoupler

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. Spectrolite is an extensive product line of economical high-performance amplifiers and multicouplers conceived out of the need for RF performance not previously achievable with off-the-shelf products. The SPEC-M14ES uses a high-performance resistive-reactive splitter fed by balanced low-noise amplifiers. This architecture greatly improves intercept point performance while maintaining excellent noise figure and isolation across the entire product bandwidth.

SP-4709 20-3000 MHz High-Performance VHF/UHF Four-Way Multicoupler

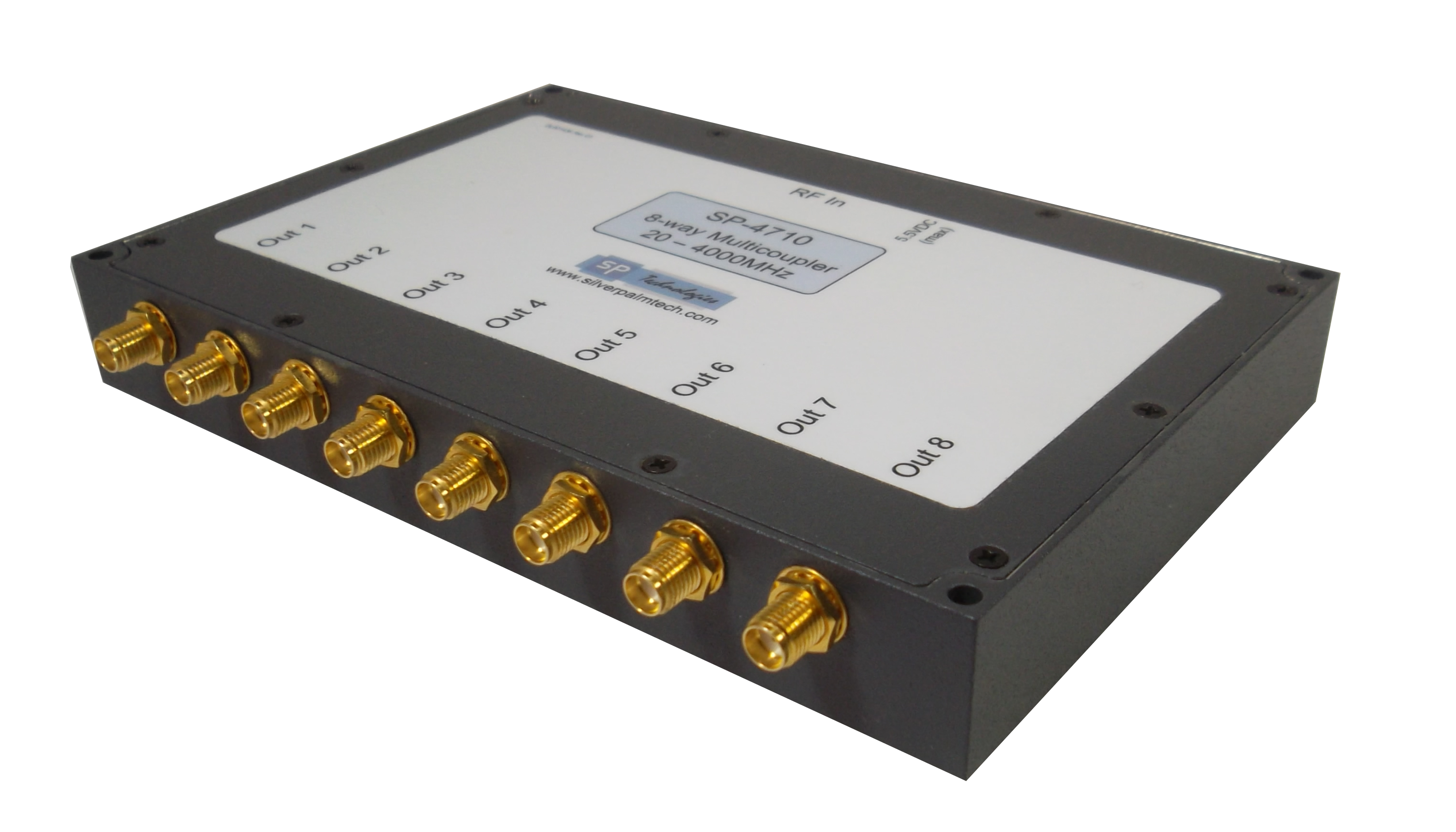

SP-4710 20-3000 MHz High-Performance VHF/UHF Eight-Way Multicoupler

SPEC-A11EO 20-4000 MHz High Performance Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11EO offers excellent performance within the HF to SHF bands. With high second-and third-order intercept points, the SPEC-A11EO provides high dynamic range amplification without sacrificing noise figure or power consumption.

SPEC-A11ES 20-6000 MHz High Dynamic Range Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11ES offers excellent performance within the HF to SHF bands. With high second-and third-order intercept points, the SPEC-A11ES provides great performance along a high dynamic range without sacrificing noise figure or power consumption.

SPEC-A11ES-1 20-6000 MHz High Gain Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11ES-1 is a two-stage amplifier that offers excellent performance within the HF to SHF bands. High gain, great second-and third-order intercept points, and low noise figure makes the SPEC-A11ES-1 an excellent amplifier for any high-dynamic range RF chain.

SPEC-A11GT 100-6500 MHz Extended Frequency Range Balanced Amplifier

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. The high-dynamic range balanced amplifiers used in the Spectrolite products were conceived out of the need for RF performance not previously achievable with off-the-shelf components. The SPEC-A11GT offers excellent performance within the VHF to SHF bands. With high second-and third-order intercept points, the SPEC-A11GT provides high dynamic range amplification without sacrificing noise figure or power consumption.

SPEC-M18AF 0.5-30 MHz 8-Way Unity Gain Multicoupler

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. Spectrolite is an extensive product line of economical high-performance amplifiers and multicouplers conceived out of the need for RF performance not previously achievable with off-the-shelf products. The SPEC-M18AF multicoupler uses a high-performance resistive-reactive splitter fed by proprietary-balanced low-noise amplifiers to provide eight near unity gain outputs. This architecture maximizes dynamic range by greatly improving intercept point performance while maintaining excellent noise figure and isolation across the entire product bandwidth.

SPEC-M18EO 20-4000 MHz 8-Way Unity Gain Multicoupler

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. Spectrolite is an extensive product line of economical high-performance amplifiers and multicouplers conceived out of the need for RF performance not previously achievable with off the shelf products. The SPEC-M18EO multicoupler uses a high-performance resistive-reactive splitter fed by proprietary-balanced low-noise amplifiers to provide eight near unity gain outputs. This architecture maximizes dynamic range by greatly improving intercept point performance while maintaining excellent noise figure and isolation across the entire product bandwidth.

SPEC-M18HT 500-6500 MHz 8-Way Unity Gain Multicoupler

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. Spectrolite is an extensive product line of economical high-performance amplifiers and multicouplers conceived out of the need for RF performance not previously achievable with off-the-shelf products. The SPEC-M18HT multicoupler uses a high-performance resistive-reactive splitter fed by proprietary-balanced low-noise amplifiers to provide eight near unity gain outputs. This architecture maximizes dynamic range by greatly improving intercept point performance while maintaining excellent noise figure and isolation across the entire product bandwidth.

SPEC-M1GAF 0.5-30 MHz 16-Way Unity Gain Multicoupler

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. Spectrolite is an extensive product line of economical high-performance amplifiers and multicouplers conceived out of the need for RF performance not previously achievable with off-the-shelf products. The SPEC-M1GAF multicoupler uses a high-performance resistive-reactive splitter fed by proprietary-balanced low-noise amplifiers to provide sixteen near unity gain outputs. This architecture maximizes dynamic range by greatly improving intercept point performance while maintaining excellent noise figure and isolation across the entire product bandwidth.

SPEC-M1GES 20-6000 MHz 16-Way Unity Gain Multicoupler

The Spectrolite product line leverages field-proven proprietary designs into compact modules for military, commercial, and laboratory use. Spectrolite is an extensive product line of economical high-performance amplifiers and multicouplers conceived out of the need for RF performance not previously achievable with off-the-shelf products. The SPEC-M1GES multicoupler uses a high-performance resistive-reactive splitter fed by proprietary-balanced low-noise amplifiers to provide sixteen near unity gain outputs. This architecture maximizes dynamic range by greatly improving intercept point performance while maintaining excellent noise figure and isolation across the entire product bandwidth.

Multicoupler Frames

We offer a number of Multicoupler frames to hold and power our Multicoupler modules. Each of these frames accept AC power and provide the DC power needed for the modules. Many of these frames also supply bias power on the RF input connector for tower-mounted equipment.

Model #	Multicouplers	Packaging	Control	Features
SP-4211	10 or Less Multicoupler Channel Variations	4U Rack 22" deep	Ethernet or RS-232	Front Panel Controls with Remote Option
SP-4320	1 or 2 SP-4709 1:4	1U Rack 10” deep	Ethernet or RS-232	Fiber Control and Power for SP4711
SP-4321	1 or 2 SP-4710 1:8	1U Rack 10” deep	N/A	Holds one or two SP-4710 8-way couplers
SP-4322	1 or 2 SP-4709 1:4	1U Rack 10” deep	Ethernet or RS-232	Fiber Control for SP-4711 and DC power for SP-1394
SP-4323	1 or 2 1:8 Multicouplers	1U Rack 20” deep	Ethernet	Adjustable gain control per channel and power for SP-47xx TMAs
SP-4324	1 or 2 1:4 Multicouplers	1U Rack 10" deep	N/A	Multiple configurations available, CE Certified
SP-4326	1-4 1:4 Multicouplers	1U Rack 10" deep	N/A	Multiple configurations available, CE Certified

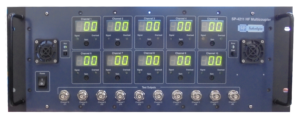

SP-4211 Multicoupler Frame

SP-4320 Multicoupler Frame

The SP-4320 is a 1U 19” rack-mounted frame for one or two SP-4709 4-way couplers. An internal power supply provides 24VDC LNA power. The frame may be purchased with or without the SP-4709 multicouplers.

The SP-4320 also includes a controller to allow either LAN or RS-232 control of a remote SP-4711 family LNA. The controller can manage and monitor the operation of the remote LNA over an LC-type fiber-optic interface.

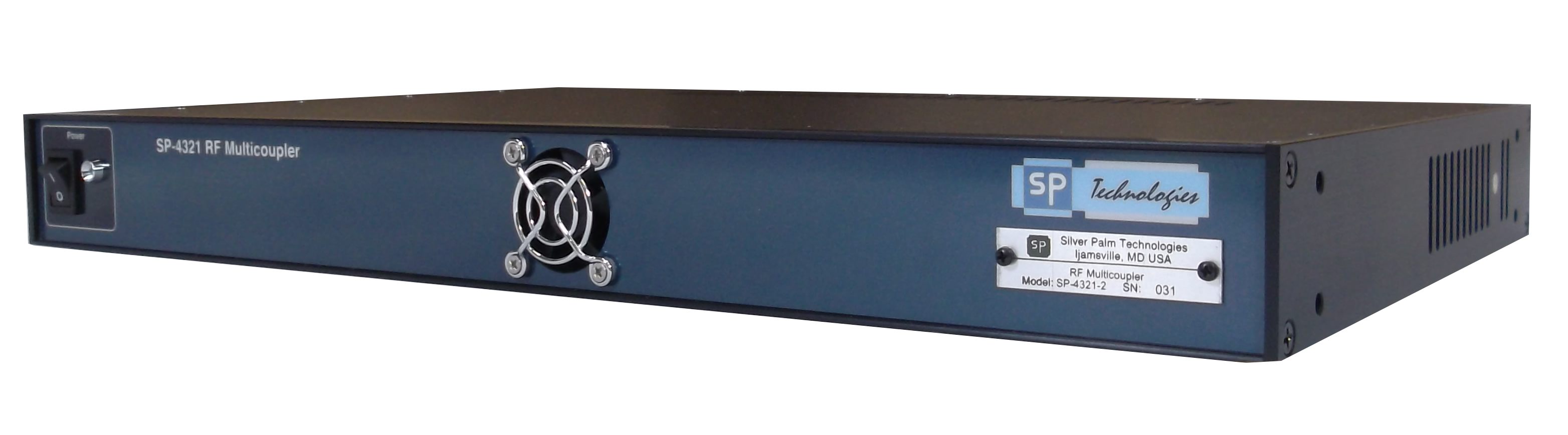

SP-4321 Multicoupler Frame

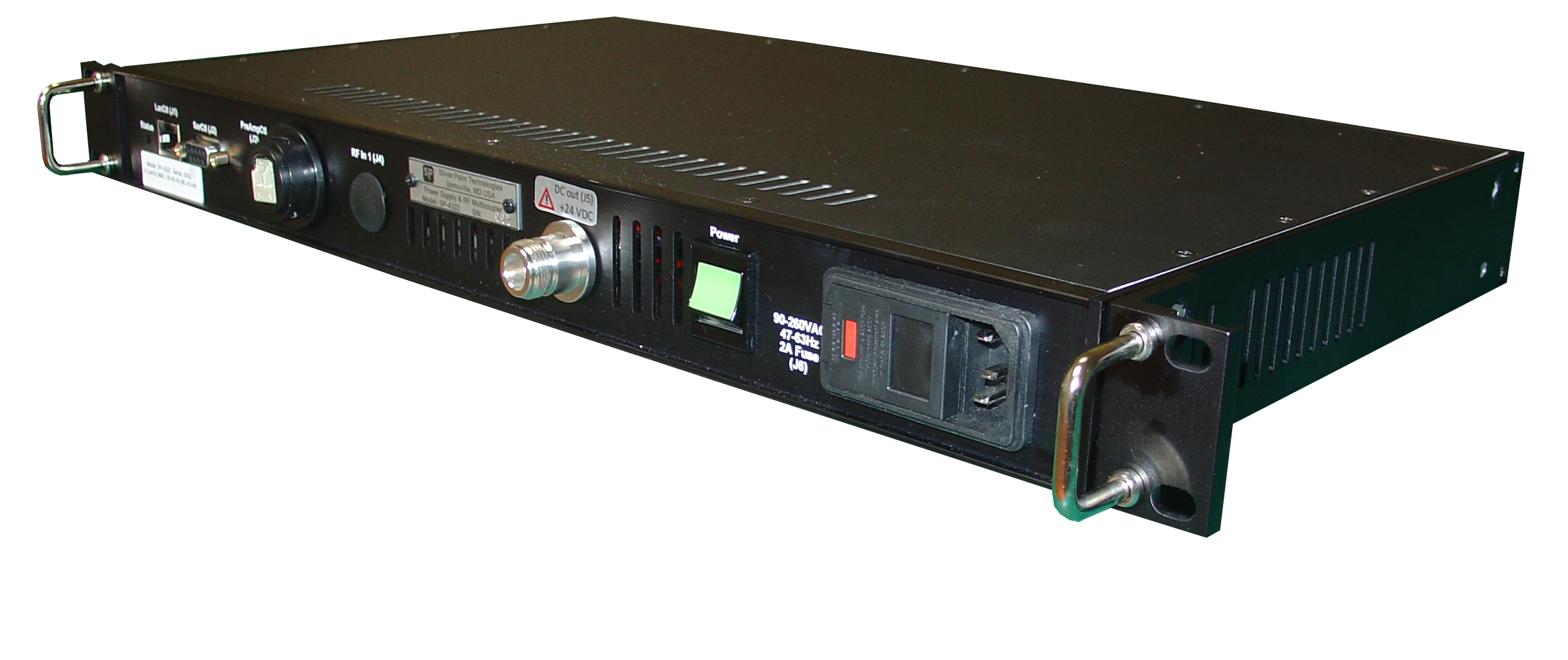

SP-4322 Multicoupler Frame

The SP-4322 is a 1U 19” rack-mounted frame that includes a 24 VDC power supply to remotely power an SP-1394 subsystem and space for optional SP-4709 multicouplers. The SP-4322 also includes a controller to allow LAN or RS-232 control of SP-1394 DC power and a remote SP-4711 family LNA. The controller can manage and monitor the operation of the remote LNA over an LC-type fiber-optic interface.

SP-4323 Multicoupler Frame

SP-4324 Multicoupler Frame

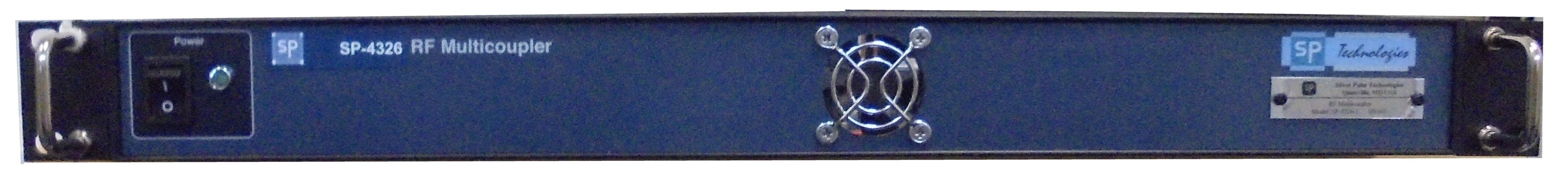

SP-4326 Multicoupler Frame

Tower-Mount Low-Noise Amplifiers

We offer a line of customizable, high-performance Low-Noise Amplifiers in weather-proof housings for tower-mount applications. These Tower-Mount Amplifiers provide low noise figure, high dynamic range and allow optimized gain control to match the downlink.

Model #	Frequency Bands (MHz)	Channel	Inputs Per Channel	Packaging	Controls	Gain (dB)
SP-4711-2	230–390 or 390–660 or 700–1000 and 1700–2700	2	1	8” × 10” × 4”	Switches Inside Unit or Fiber Remote	-8 to +20
SP-4714	100-6000	1	1	8” × 10” × 4”	Switches In Unit	-5 to +20
SP-4717	100-600 700-1000 1700-2700 3700-6000	2	4 , 1 per Band	10” x 12” x5.3”	Switches Inside Unit	-8 to +22

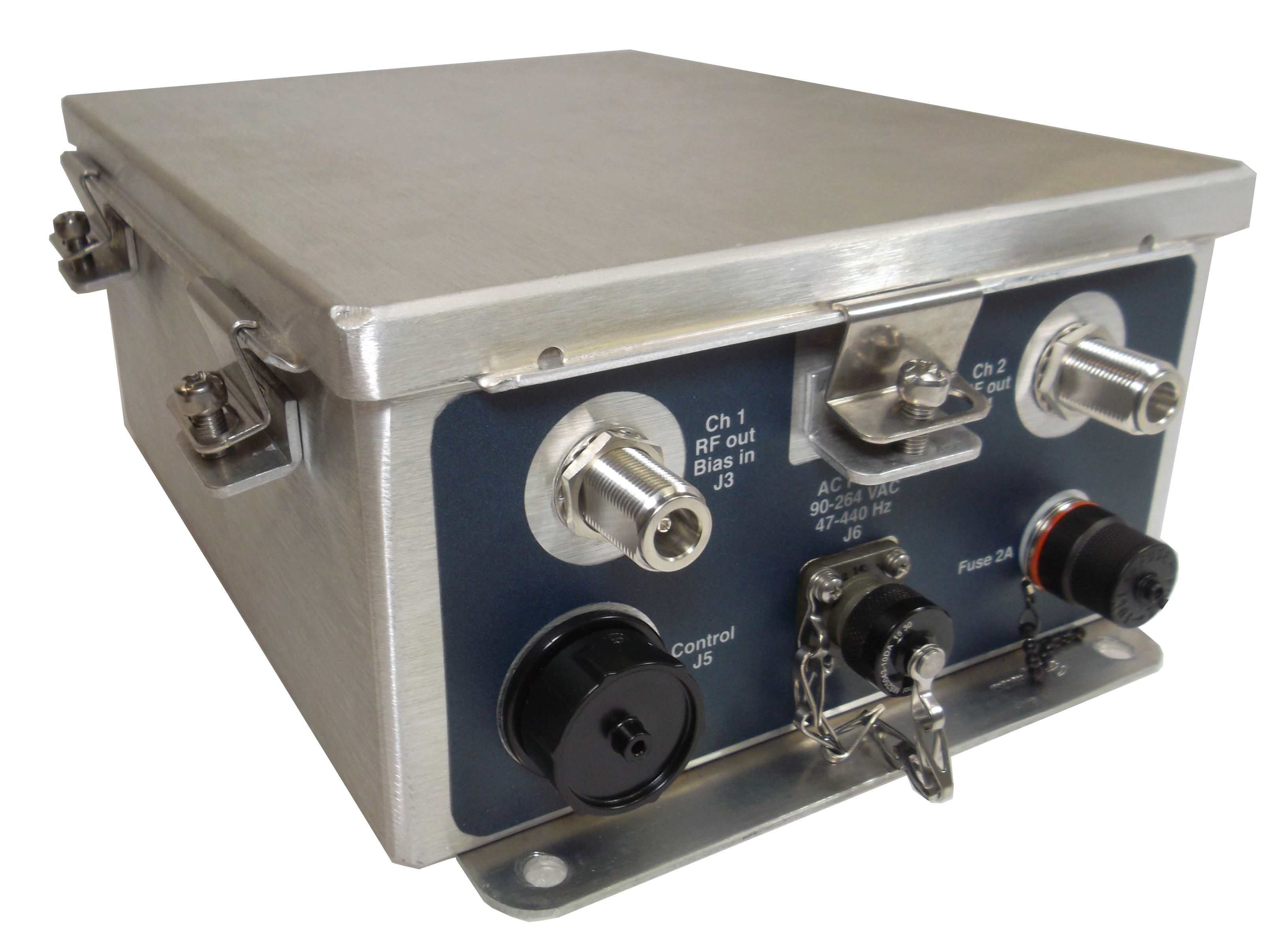

SP-4711-2 Dual Band LNA

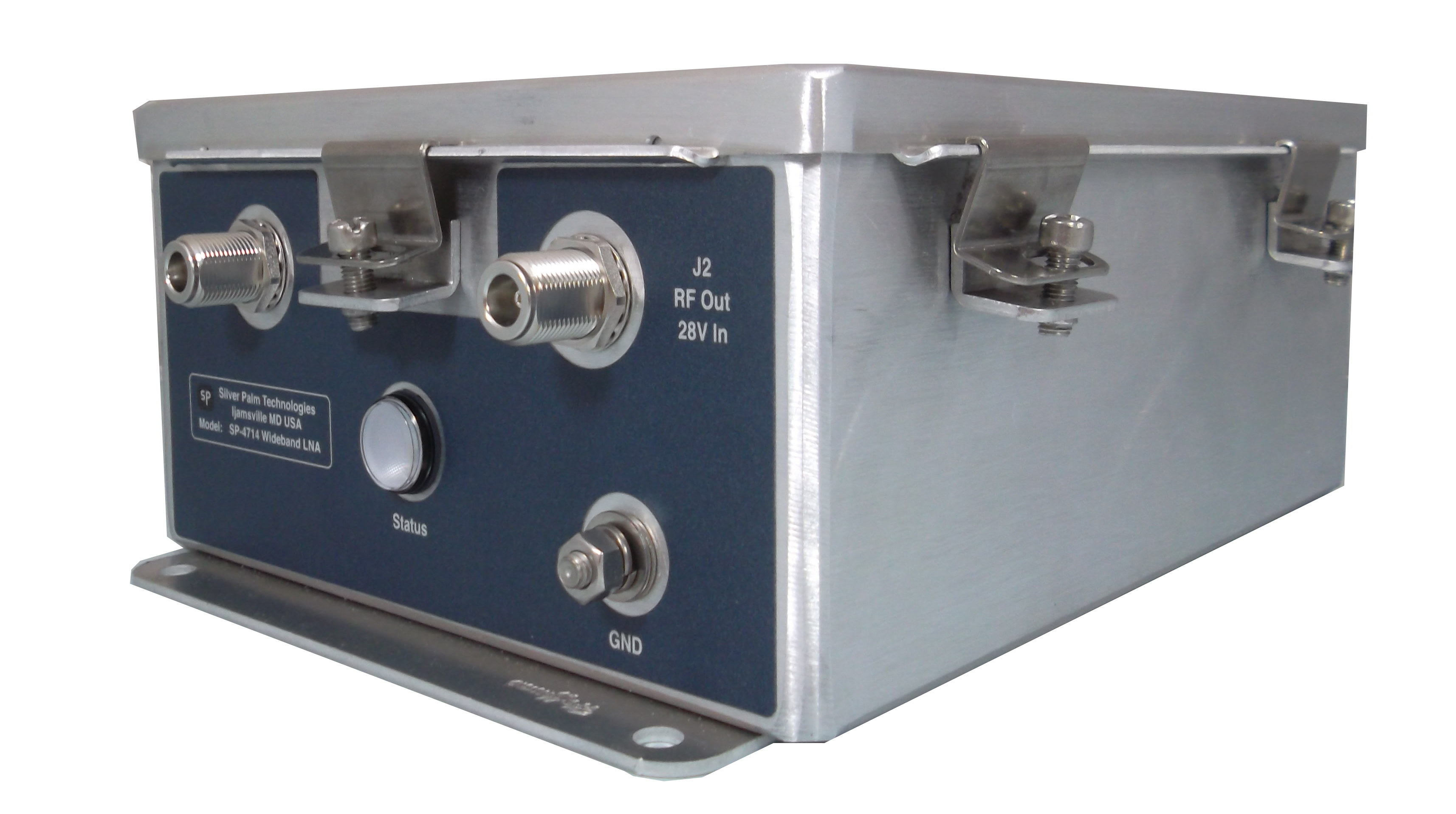

SP-4714 Wideband LNA

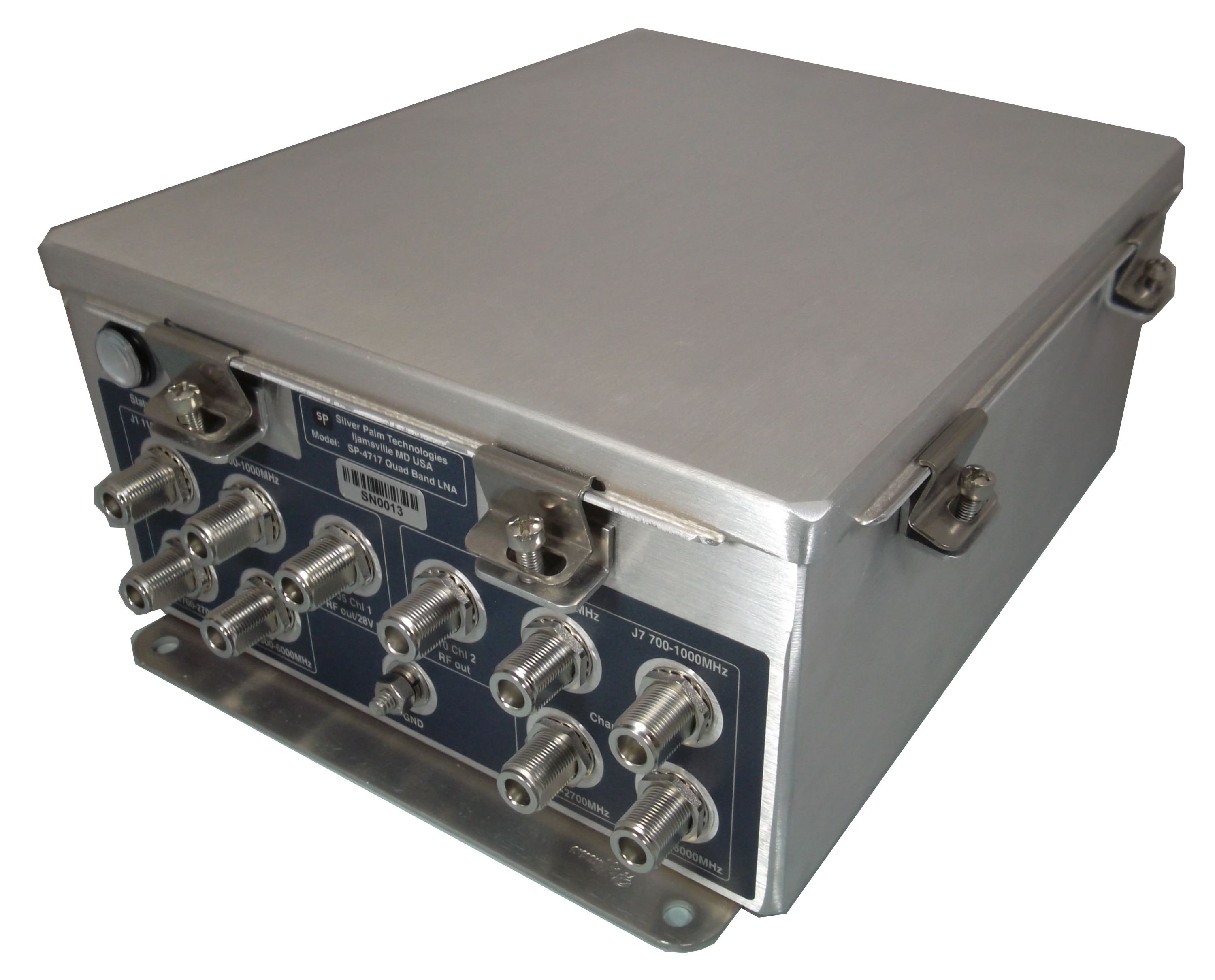

SP-4717 Quad-Band LNA

The SP-4717 is a quad-band, two-channel Low-Noise Amplifier (LNA) that supports the 120-600 MHz, 700-1000 MHz, 1700-2700 MHz, and 3700-6000 MHz frequency bands. Designed to be antenna post-mounted, the unit provides high linearity, low-noise amplification for signal-collection applications involving long cable runs. Each of the two channels has four filtered inputs with independent gain controls for each band. A high-performance quadraplexer combines the four bands into one 120 MHz to 6 GHz output.
