Signal Conversion Systems

Enhanced Flexibility And Capability

The icCON series of signal converters includes a variety of configurations to satisfy a wide range of signaling requirements. Our modular electrical and mechanical design paradigm allows for off-the-shelf customization to fulfill the unique requirements of individual programs. icCON converters are available in configurations ranging from stand-alone single-channel converters to fully integrated 1U rack-mount chassis supporting up to four channels.

icCON – TTL/RS422 Converter

Providing four separate channels capable of bidirectional conversion, our icCON-4T4R is an eight channel RS-422/TTL converter delivering enhanced flexibility and capability by allowing the user to determine conversion direction. The selection of RS-422 to-TLL or TTL-to-RS-422 conversion is configurable via a front panel switch.

The icCON is also equipped with an internal AC power supply, operates from 110-to-220 VAC and provides coax and triax I/O interface ports directly on the front panel.

icCON Product Highlights

  • Bidirectional Conversion from TTL to RS-422 or RS-422 to TTL
  • Conversion Direction Selectable via Front Panel Switch
  • Coax BNC Connections for TTL signals
  • Triax Connectors for RS-422 Signals


Size1.75″h x 19″w x 7.5″d (19″ 1u rack mountable chassis)
Power Input Connector TypeNEMA C13
Power Input Range85 – 264 VAC
Power Consumption<10 Watts
RS-422 ConnectionTriax Female
RS-422 Input Common Mode Voltage-7V to 12V
RS-422 Maximum Frequency40 Mhz
RS-422 Input Determination100 Ohm Differential
RS-422 Differential Driver Output Voltage (Unloaded)5V
RS-422 Differential Driver Output (100 OHM Differential Termination)2V (min)
RS-422 Common Mode Output Voltage (100 OHM Differential Voltage) 2V (min), 3V (max)
TTL ConnectionCoax BNC Female
TTL Input High Voltage2.5V Min
TTL Low Level Output Voltage0.5V Max
TTL Output Current100 mA Max
TTL Input High Voltage2.5V Min
TTL Low Level Output Voltage0.5V Max
TTL Maximum Frequency40 Mhz

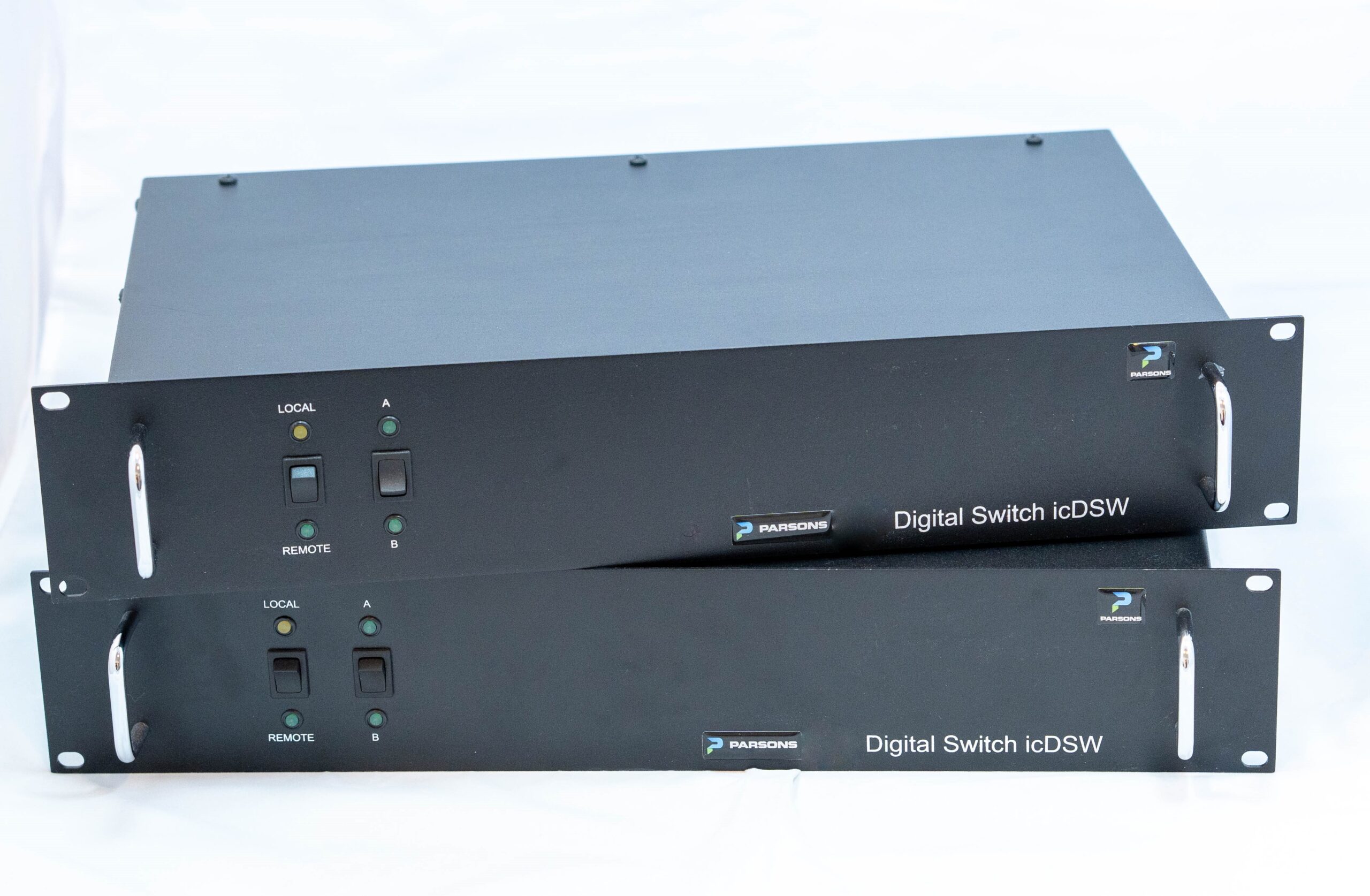

icDSW – Highly Configurable Digital Switch

Our icDSW Highly Configurable Digital Switch is a highly configurable multiple input/output device that can be used for a variety of applications including signal conversion, multi-channel frame synchronization, best source select, heartbeat failover, data distribution, data replication, and serial to IP conversion.

Providing eight bidirectional signal channels easily configurable as RS-422, TTL or LVDS, each channel can accommodate multiple input termination schemes including single ended, differential, and common mode connected to a FPGA.

Adaptable Interface

The combination of highly adaptable I/O interface, FPGA architecture and ethernet interface allows for an unlimited number of applications, making the icDSW highly adaptable and configurable solution that satisfies a wide range of specialized applications and requirements.

PowerAC, 85-264 VAC, 47-63 Hz
I/O ChannelsEight bidirectional channels. Each channel is composed of two input signals and two output channels.
Secondary InterfaceLVDS – signal use if configurable per customer requirements.

Contact Us

For more information about our Signal Conversion Systems, please fill out the contact form.

*Parsons complies with all applicable Trade Compliance regulations. Some of Parsons products may require an authorization from the U.S. Government before export.
