Radio Frequency (RF) Solutions

Receivers, Transceivers, SDRs, and Digitizers

Our line of radios encompasses products with different sets of capabilities and form factors. We also specialize in Software-Definable Radio (SDR)-supporting hardware, allowing for an effective SDR system to be put together with minimal components. We have your RF solutions from antenna to data.

Click here to learn more about our line of RF switches, amplifiers, and distributions.

Receivers

Software Defined Radios (SDRs)

Digitizers

Receivers

We offer many high performance receivers with broad frequency coverage in small modular packages. The receivers feature super heterodyne architectures to provide maximum RF performance in dense signal environments yet are very economically priced. The receivers all have a low-noise figures, high dynamic range, and nominal gain with IF outputs that are optimized for digitization. The receivers are powered from 9 –16 VDC and can be controlled with RS-232 or USB interfaces using high-level industry common ASCII commands.

Model #	Frequency Bands (MHz)	BW (MHz)	Packaging	Features
SP-8318	2–8000	100	3” × 5.44” × .6”	One Channel Unit 187.5 MHz Analog IF Output LO Synchronization Master/Slave LO Configuration <500 µs Tuning Time HF Bypass
SP-8322	20-18000	100	3" x 4.5" x .6"	Phase-Coherent Capable Low Noise Figure Fast Tuning
SP-8383-2	20–3000	40	3” × 5” × .6”	One Channel Unit 70 MHz Analog IF Output Four Selectable IF Bandwidths
SP-8383-3	20–6000	40	3” × 5. × .6”	One Channel Unit 70 MHz Analog IF Output Four Selectable IF Bandwidths
SP-8384	20-6000	40	6” × 5” × .93”	Four Channel Unit 70 MHz Analog IF Output
SP-8411	100-18000	500	6" x 5" x 0.8"	Controlled via SPI or USB 2.o Power Consumption 6 watts

SP-8318 V/UHF Tuner

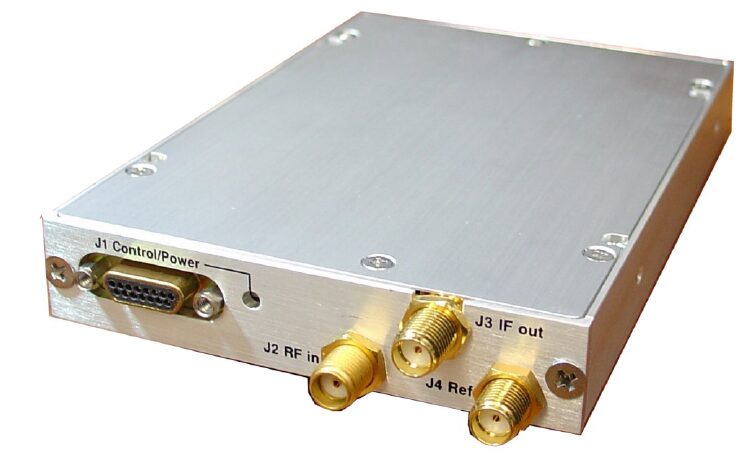

SP-8322 V/U/SHF Tuner

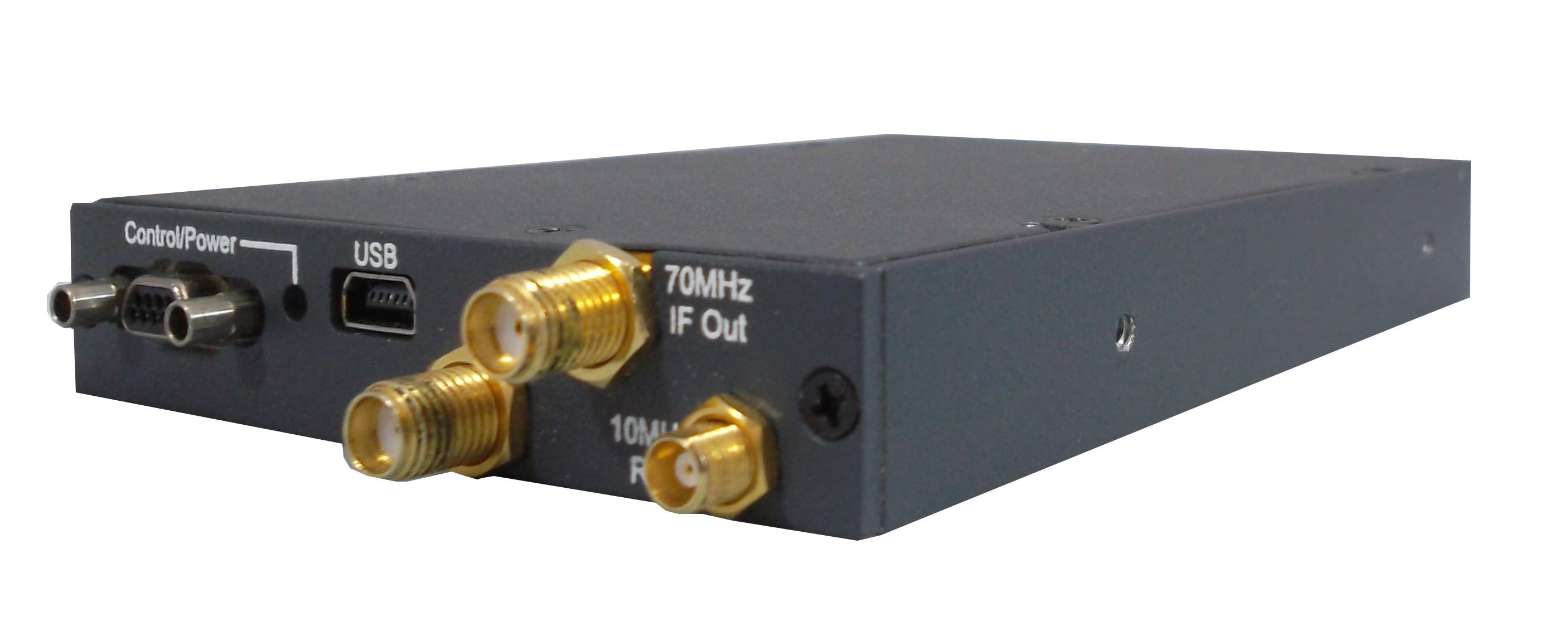

SP-8383-2 30 MHz–3 GHz Miniature VHF/UHF Tuner

SP-8383-3 30 MHz–6 GHz Miniature VHF/UHF Tuner

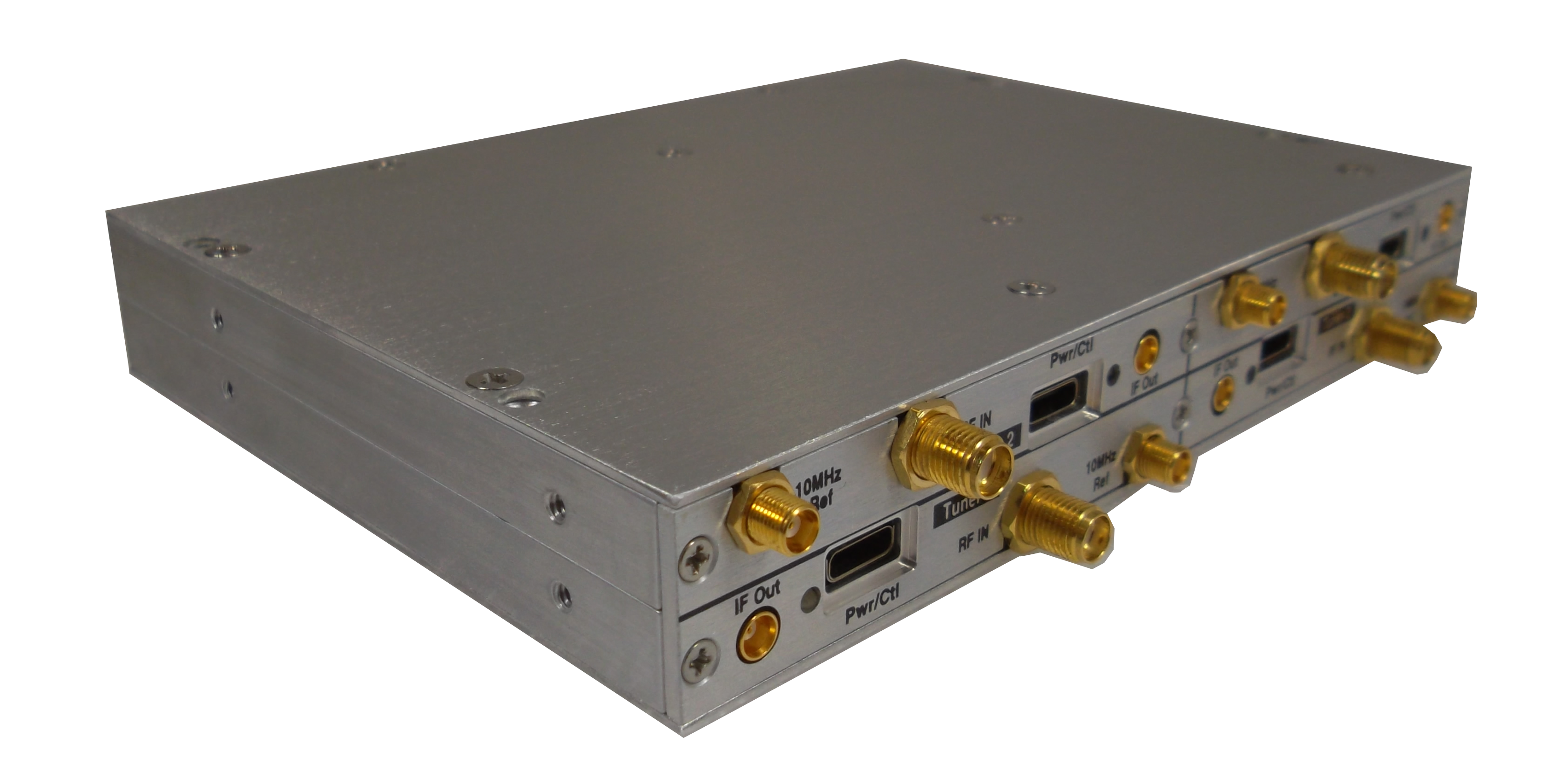

SP-8384 30 MHz-6 GHz Quad Pack V/UHF Tuners

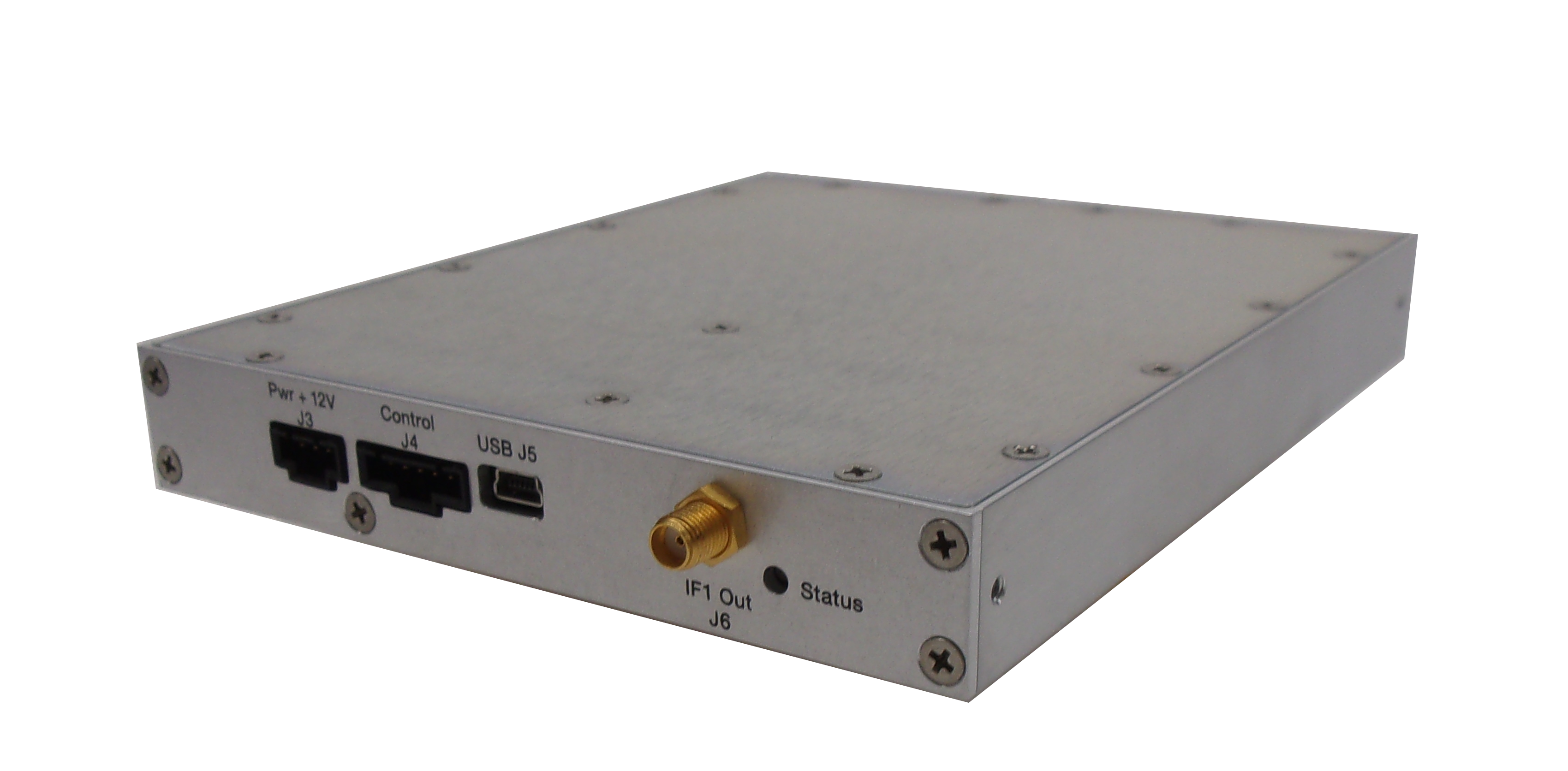

SP-8411 Microwave Tuner Module

The SP-8411 is a high-performance microwave tuner, covering the 100 MHz to 18 GHz frequency range in a modular brick-type form factor. The unit is either controlled via a simple SPI interface or by a USB 2.0 interface. The SP-8411 USB interface supports common ASCII commands, so it can easily interface with industry standard applications. The SP-8411 uses the Atlanta Micro AM9017 converter, which provides excellent performance with very low SWaP.

Software-Definable Radios And Transceivers

These units have signal and overload indicators and are controllable via Ethernet or the front panel. They offer configurable frequency ranges for optimal performance.

Model #	Channel	Frequency	BW	Output	Features
SP-1342	4	20–6000	40	VITA 49 IF over 10 GB Ethernet	CD-ROM Drive Package Optional Flexible Resampler Optional Larger FPGA
SP-1381	1-8	20–6000	40	VITA 49 IF over 10 GB Ethernet	1U Package Flexible Resampler Optional Larger FPGA
SP-1383	8	20-18000	100	VITA 49 IF over 10 GB Ethernet	Multiple Configurations GPS-Stabilized Reference
SP-1394	4	Varies	40 or 100	VITA 49 IF over 10 GB Ethernet	Houses 4 Tuners NEMA 3R Enclosure With Cooling Fan
SP-8304	4	300–4000	20	VITA 49 Thunder bolt 3 or PCIe	Modular 4" × 6" × 1.5" 4 Independent Tuners GNU Radio Compatible
SP-8309	Rx/1 Tx	300–4000	20	VITA 49 IF over USB 3.0	Modular 4" × 6" × 1" GNU Radio Compatible Optional Integrated Antenna
SP-8344	4	20–6000	40	VITA 49 IF Output, Aurora	3U VPX Conduction Cooled VITA 67.3 RF Connections
SP-8385	1	20–6000	4	21.4 MHz Analog IF, AM/ FM/Log	Modular 3.5" × 6.0" × 1.1" SDR Replacement for Analog Receivers SDR Platform for Custom Applications
SP-8386	1	20-8000	40	FFT processing for spectral data output streaming	Modular 3.5" x 6.0" x 1.25"

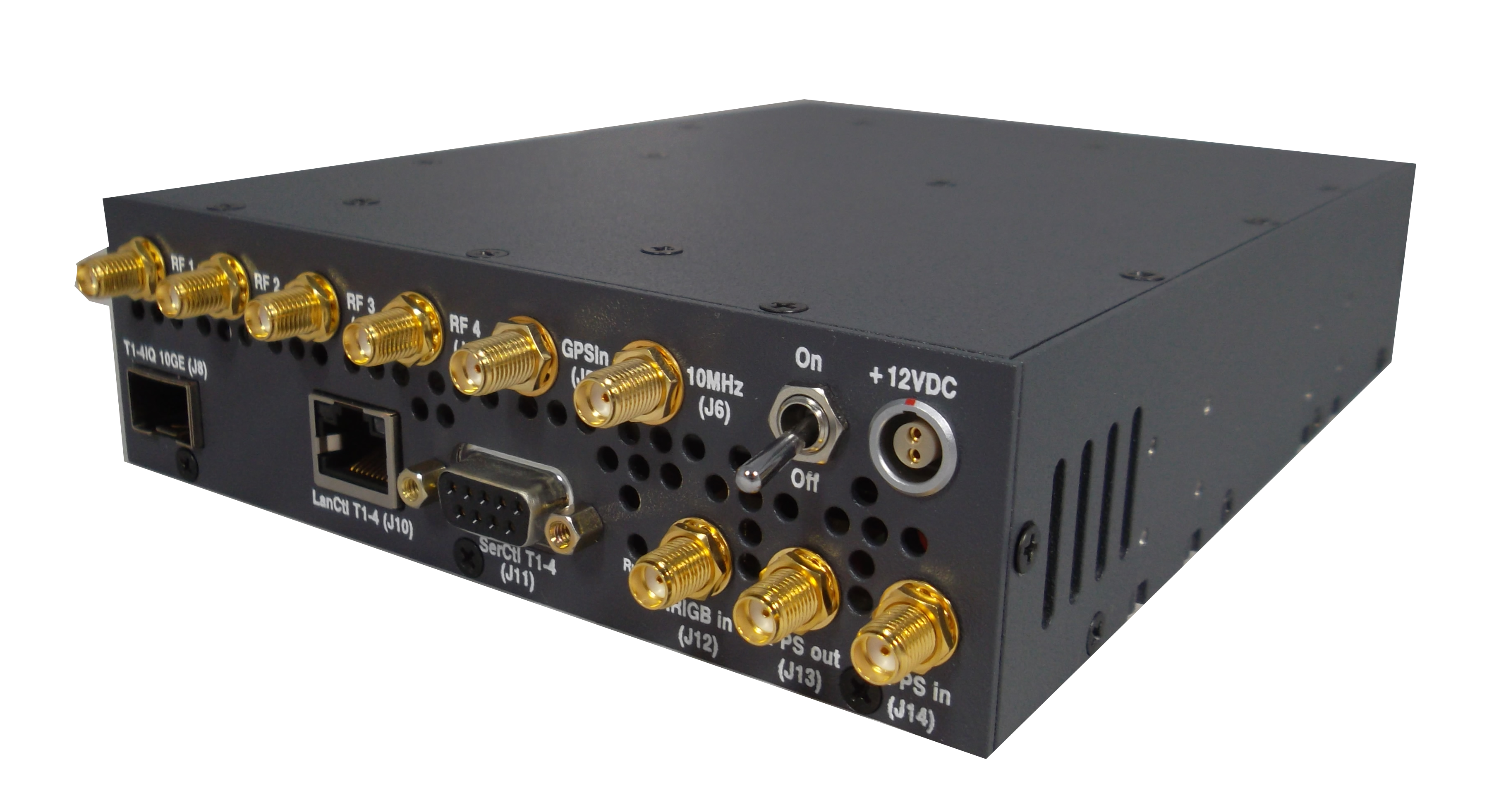

SP-1342 20 MHz-6 GHz Quad Tuner With Digital IF Output

The SP-1342 is a modular quad tuner that includes four 20 MHz to 6 GHz tuners and a four-channel IF digitizer. Each tuner and digitizer combination is capable of digitizing up to 40 MHz of bandwidth. The system is LAN controlled. The digital data from the four tuners is provided on a 10-gigabit Ethernet (10GE) interface in a VITA-49 compatible format. The unit is capable of providing four 40 MHz channels on the 10GE interface in real-time.

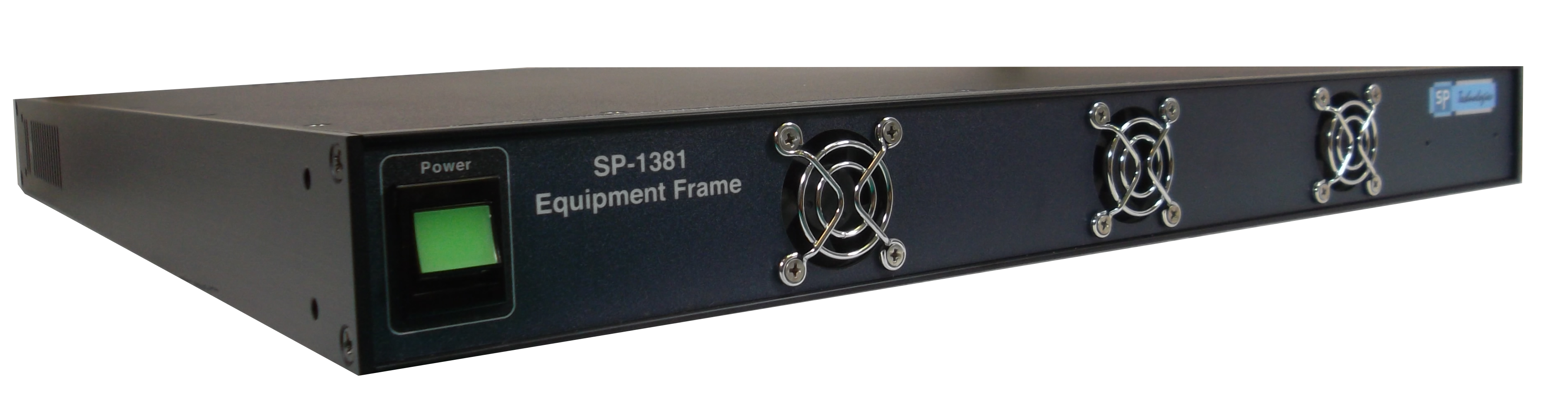

SP-1381 10GE VITA-49 Eight-Channel Tuner Equipment Frame

The 1U-rack-mountable frame holds one to eight SP-8383-x VHF/UHF tuners and includes a four-tuner digitizer with space for a second digitizer. Each digitizer is capable of 40 MHz of bandwidth per tuner. The digital IF outputs are on a 10-gigabit Ethernet (10GE) interface in a VITA-49 compatible format. The 10GE transceiver on the digitizer is implemented with an SFP+ site, so it may use a variety of commercially available fiber or copper 10GE interfaces. The unit can be purchased with a larger FPGA to support user applications.

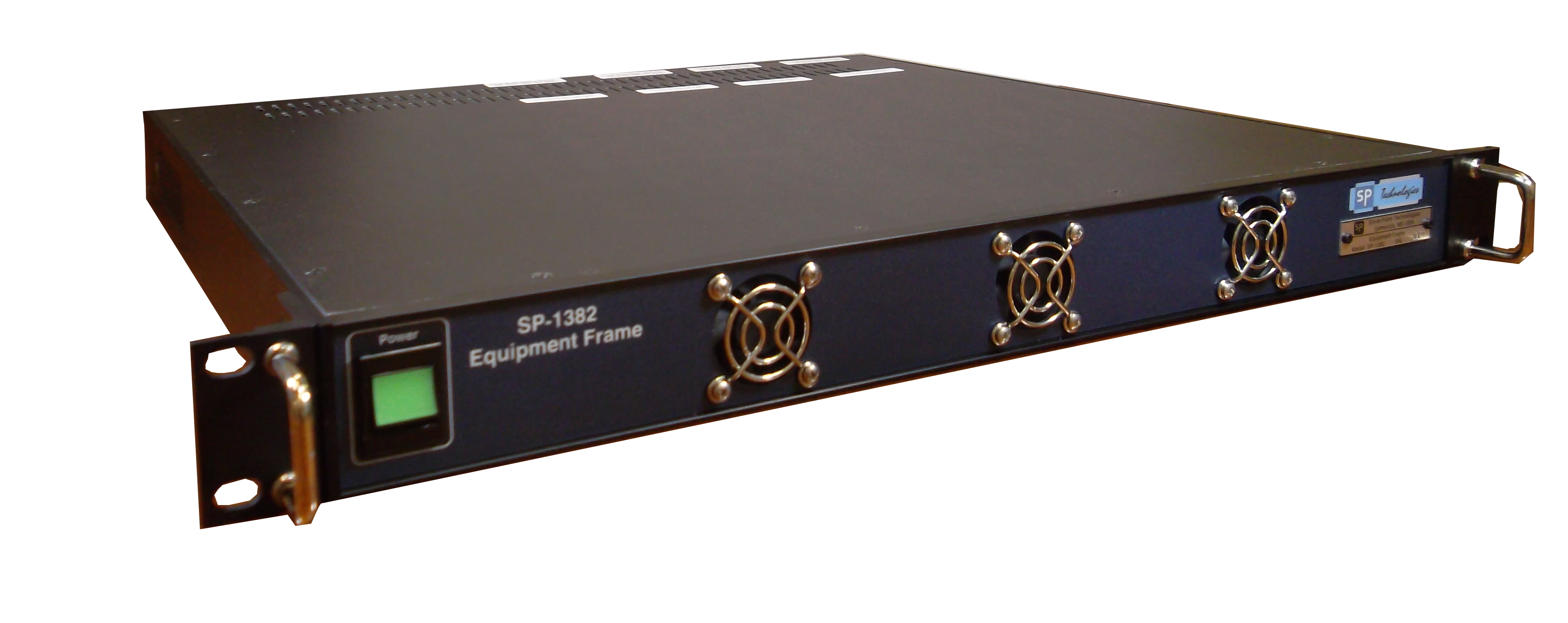

SP-1382 Rack Frame for SP-8385/8386 Receivers

SP-1383 Equipment Frame with Digital IF Output, 4/8-Pack V/UHF Tuners

The SP-1383 is a 1U rack-mount frame that holds one to four SP-83xx VHF/UHF tuners and includes a four-tuner digitizer. The SP-1383-1 configuration adds a second digitizer, supporting up to four more tuners.

The SP-1383 can be dynamically configured for phase-coherent (SP-8318s or SP-8322s tuners required) or fully independent operations by individual tuner. The SP-1383 supports the LO synchronization capabilities of the SP-8318/SP-8322 tuners. This allows the user application to determine which (up to 8) tuners are used for phase-coherent groups versus independent tuners. Any tuners not assigned to a phase-coherent group may be used for independent operations.

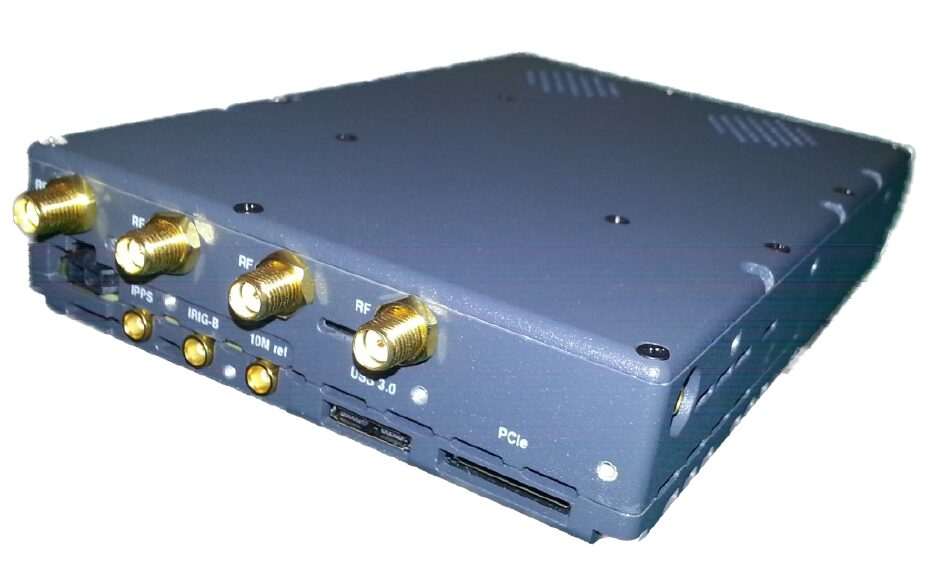

SP-8304 300 MHz-4 GHz Four-Channel Receiver

The SP-8304 is a compact, fully functional multichannel receiver. The four independent receiving channels cover 300 to 4000 MHz. Each receiver provides a 20 MHz bandwidth, providing up to 80 MHz of instantaneous coverage. It is powered from an external 9-16V power supply. The data is packetized per VITA-49 standards and made available over a PCIe interface. The PCIe physical interface is implemented via a miniature 14-pin Hirose connector with various adapters to allow connection such as PCIExpress, MiniPCIExpress, etc. Other variations of the receiver offer ThunderBolt 2 or 3 interfaces.

SP-8386 V/UHF RF Tuner

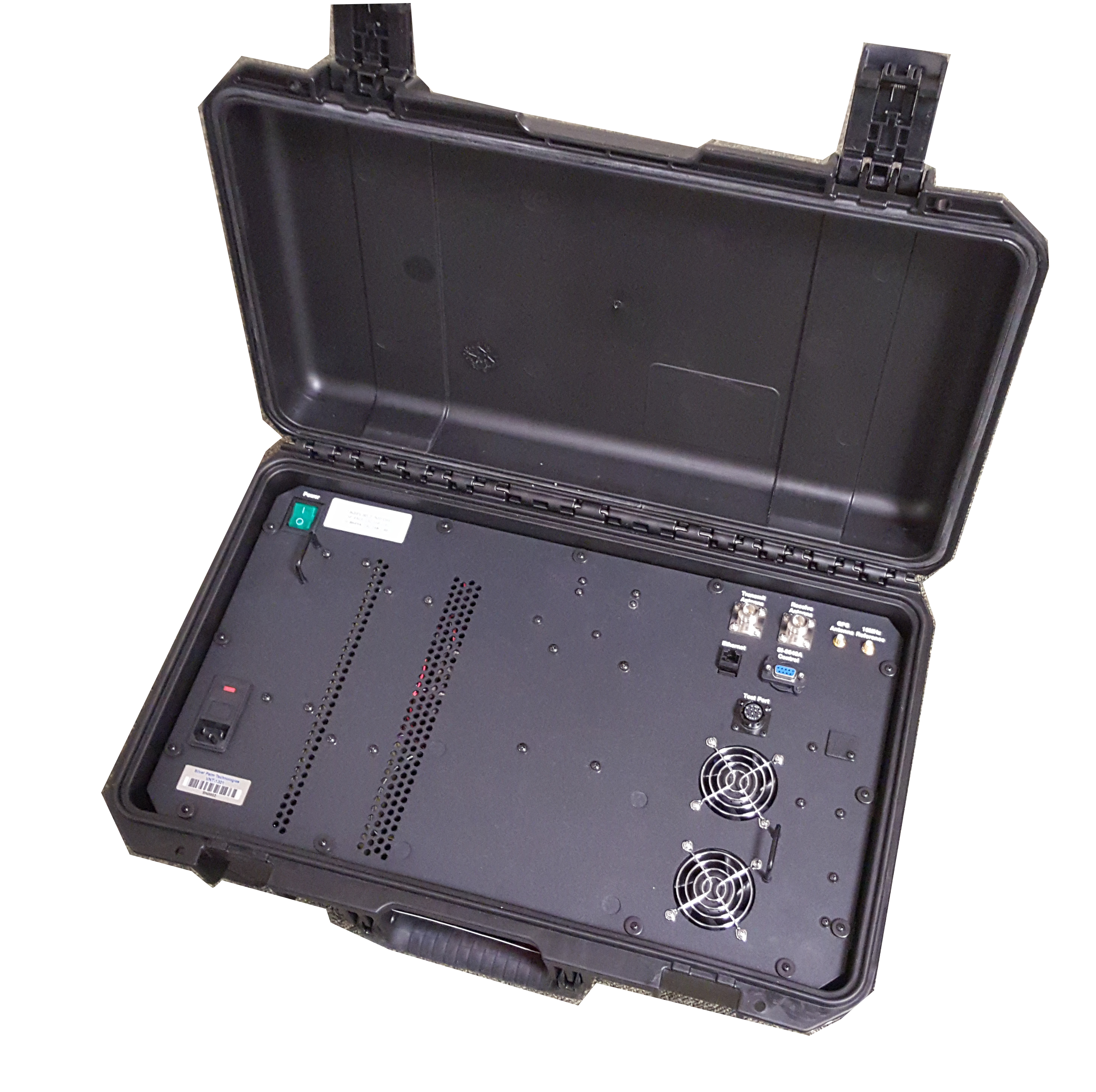

VNT-1301 Software-Definable Transceiver Suitcase System

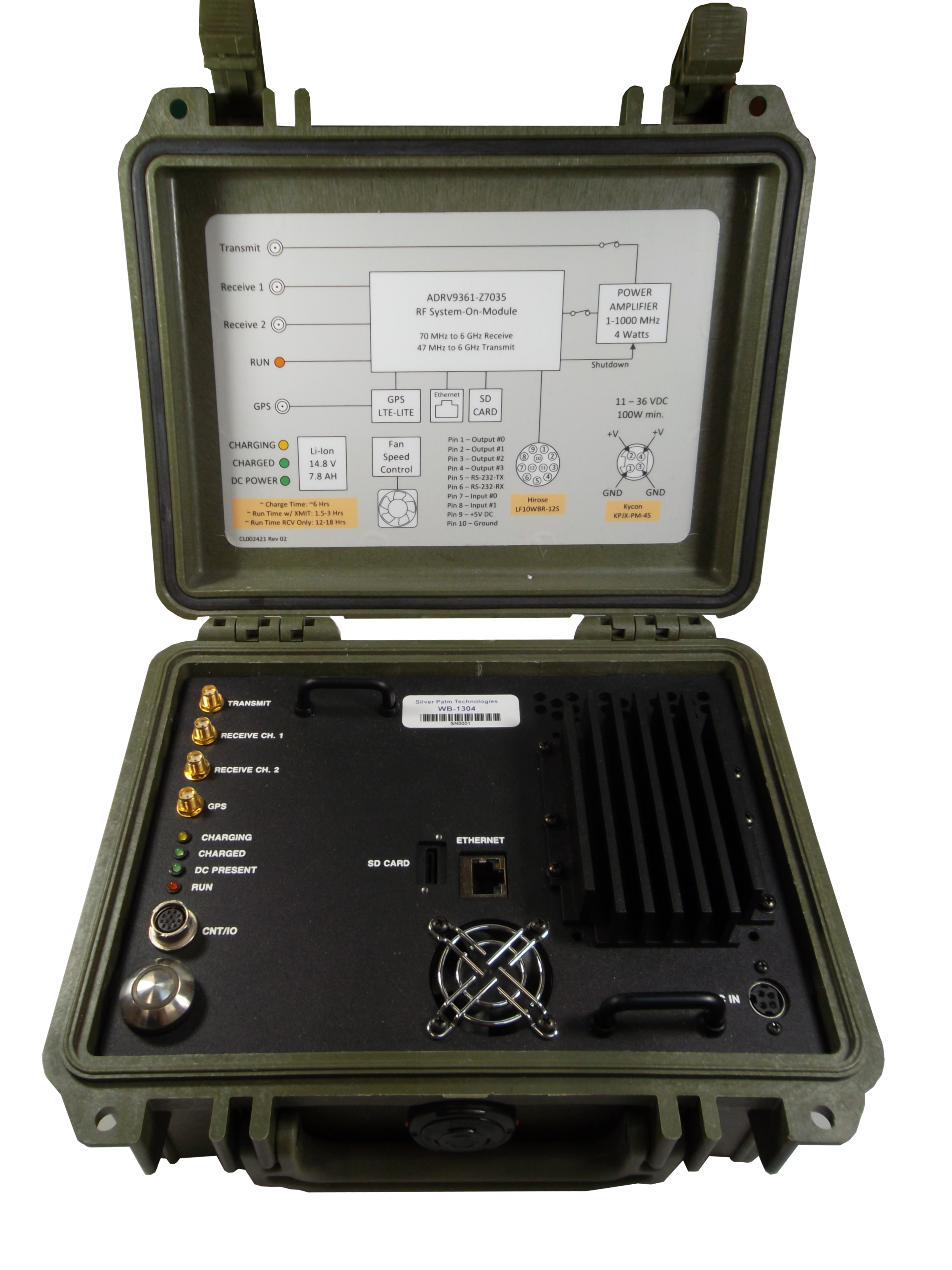

WB-1304 Software-Definable Transceiver Mini Suitcase System

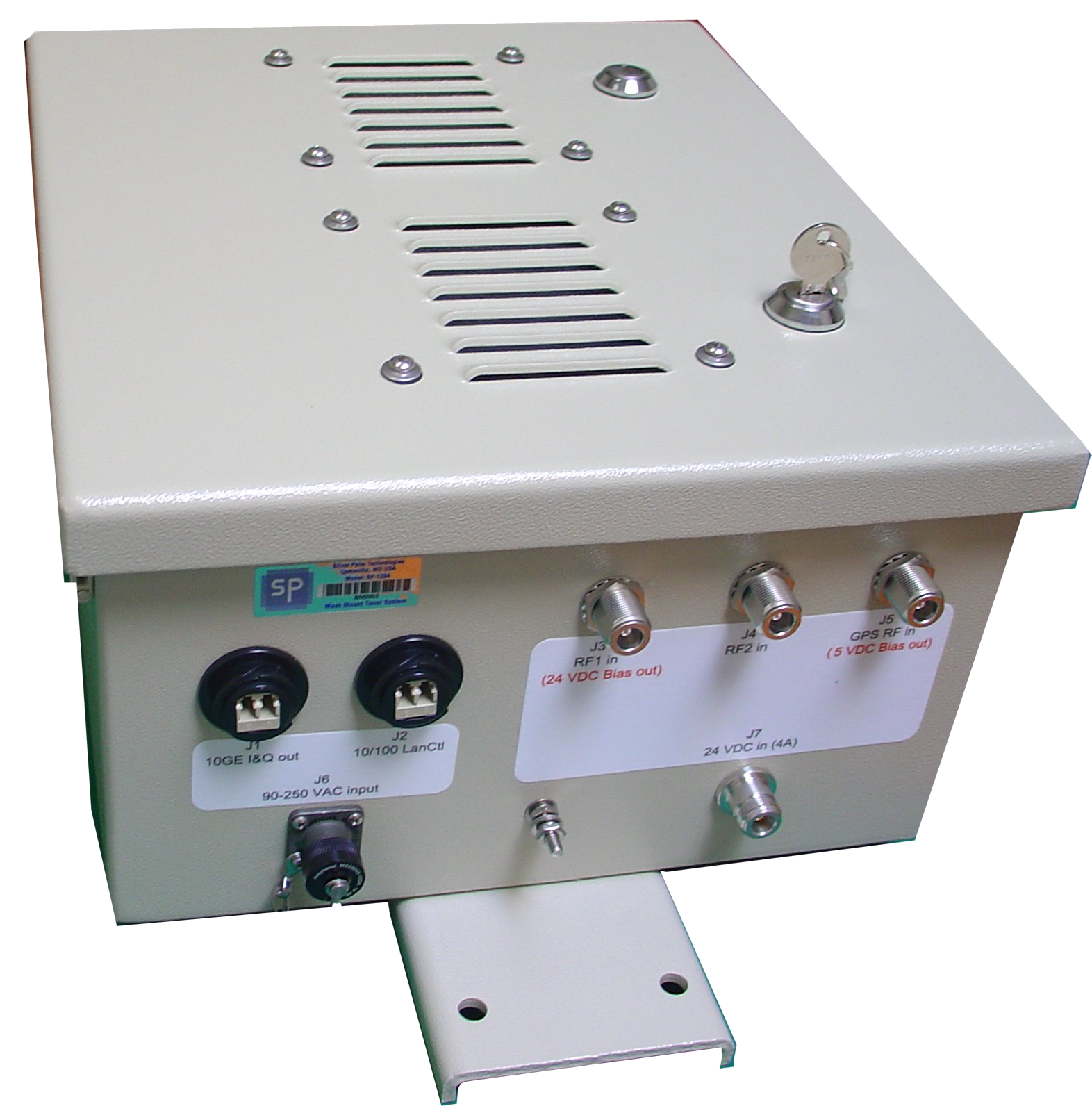

SP-1394 20 MHz-6 GHz Mast-Mount Tuner/Digitizer Frame

The SP-1394 Mast-Mount Tuner Frame allows the SP-4342 RF switch and the SP-1342 Quad Tuner Digitizer to be integrated into an outdoor enclosure that may be mast-mounted. The result is a 4-channel RF system that accepts two RF inputs between 20 MHz and 6 GHz and provides up to four 40 MHz-wide digitized IF outputs on a 10-gigabit Ethernet (10GE) LC-fiber interface. Control is from a second LC-fiber interface.

SP-4308 100 Watt Switch Module

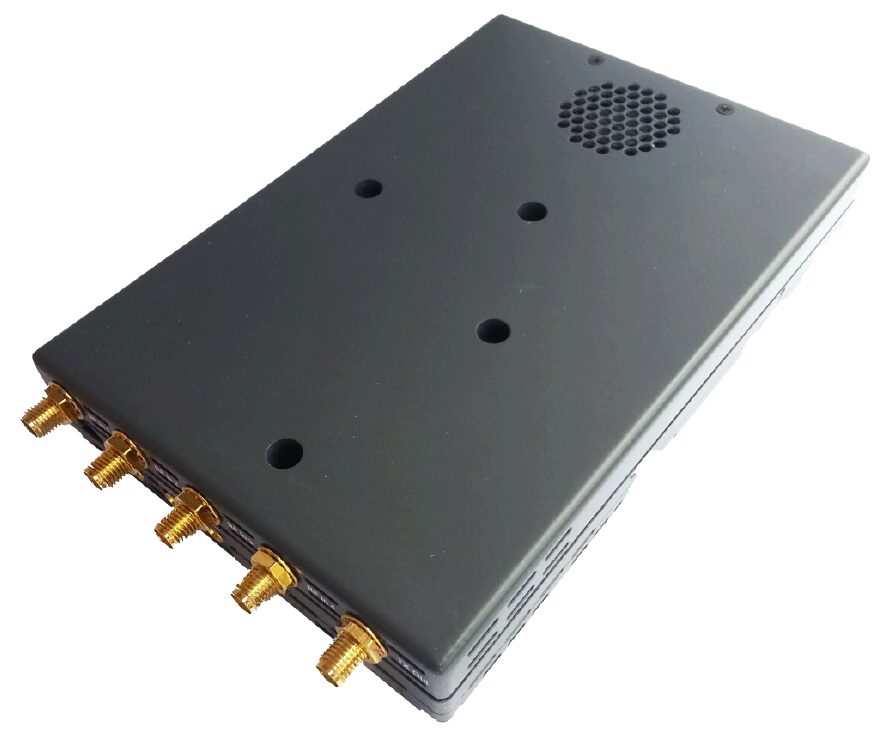

SP-8309 300 MHz-4 GHz Four-Channel MIMO Transceiver

The SP-8309 is compact, fully functional multichannel transceiver for MIMO or phase-coherent requirements. The unit measures approximately 4" × 6" × 1" and contains four receiving channels and one transmitting channel, all of which cover 300 to 4000 MHz. Each channel provides 20 MHz bandwidth I&Q data packetized per VITA-49 standards, which is available over a USB 3.0 interface. The unit can be purchased with an integrated antenna option.

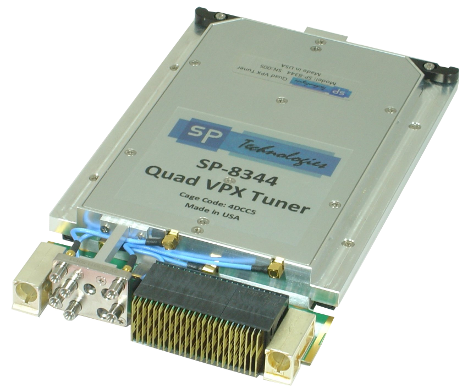

SP-8344 20 MHz-6 GHz Quad 3U VPX Tuner With Digital IF Output

The SP-8344 is a modular conduction-cooled 3U VPX quad tuner. It includes four 20 MHz to 6 GHz tuners and a four-channel IF digitizer and FPGA. A 250 Msps digitizer is connected to each tuner and is capable of digitizing the 40 MHz tuner bandwidth. The digital data from the four tuners is provided in a VITA-49 compatible format over four Aurora lanes on the VPX backplane. The FPGA includes a 10GBASE-KR interface to support a CMOSS/SOSA-compatible version of the quad tuner. The unit also includes an internal GPS-stabilized, 10 MHz reference, and a 1G Ethernet interface for control.

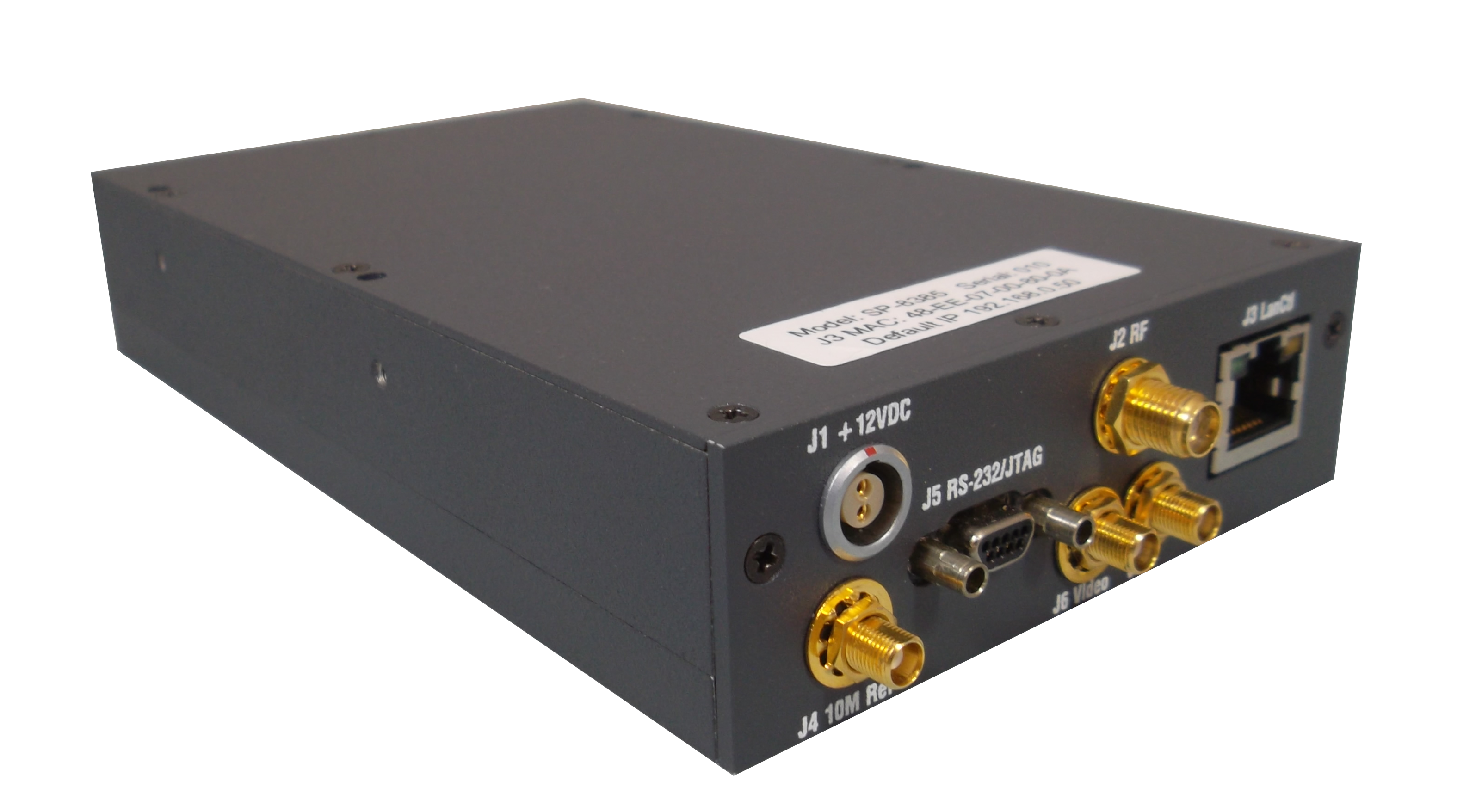

SP-8385 30 MHz–6 GHz V/UHF Receiver

The SP-8385 is a VHF/UHF receiver with a tuning range of 20 to 6000 MHz. It provides an automatic gain-controlled (AGC) 21.4 MHz IF output that is 4 MHz wide. It also has switchable AM, FM, and LOG detection modes. An internal fast fourier transform (FFT) processor is included to provide streaming FFT data over the LAN interface. The receiver is based on the SP-8383 tuner with a digital signal processor (DSP) added to perform IF filter, IF frequency conversion to 21.4 MHz, FFT processing, AGC, and AM, FM, and LOG demodulation.

Digitizers

Our digitizers convert the analog intermediate frequencies (IFs) of receivers to a VITA-49 compatible format. The digitizers provide independently controllable signal-processing chains. Each chain includes a tunable digital downconverter (DDC), wideband resampler, and bandwidth filter processors.

Model #	Channel	Frequency	BW	Features
SP-1322	2	Varies	40 or 100 MHz	CD-ROM drive size chassis
SP-5806	4 or 8	Varies	40 MHz	Optional Second 4-Channel Digitizer

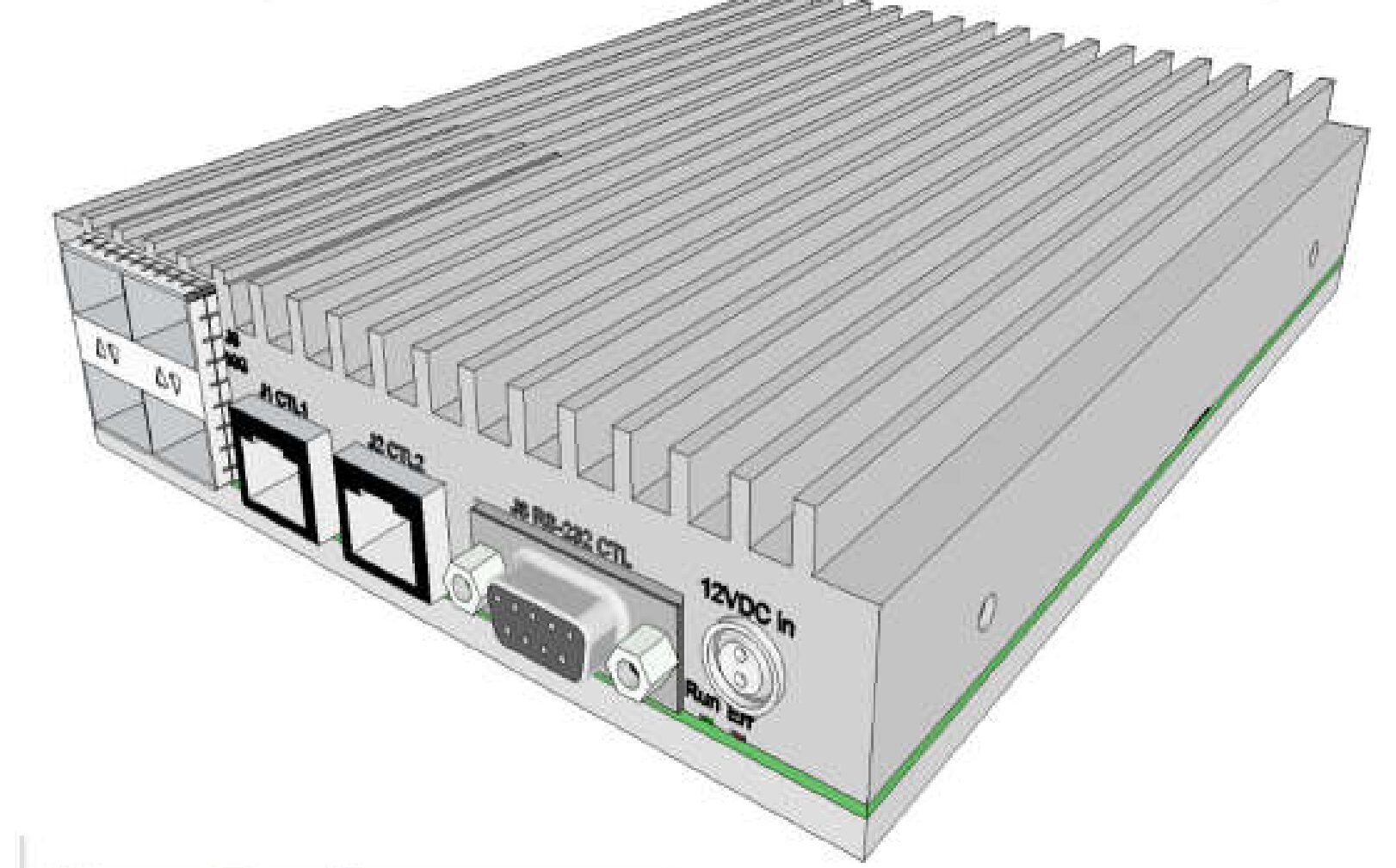

SP-5809	4	Varies	80 MHz	VITA-49 Compatible Digital IF
